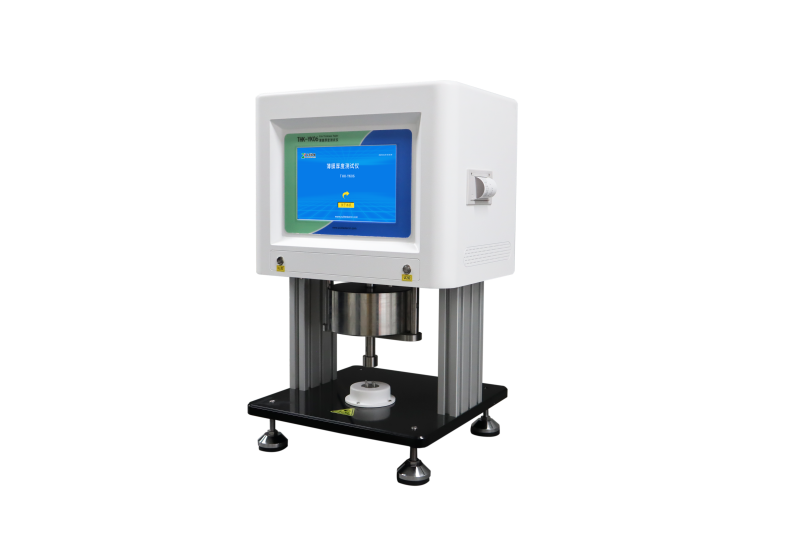

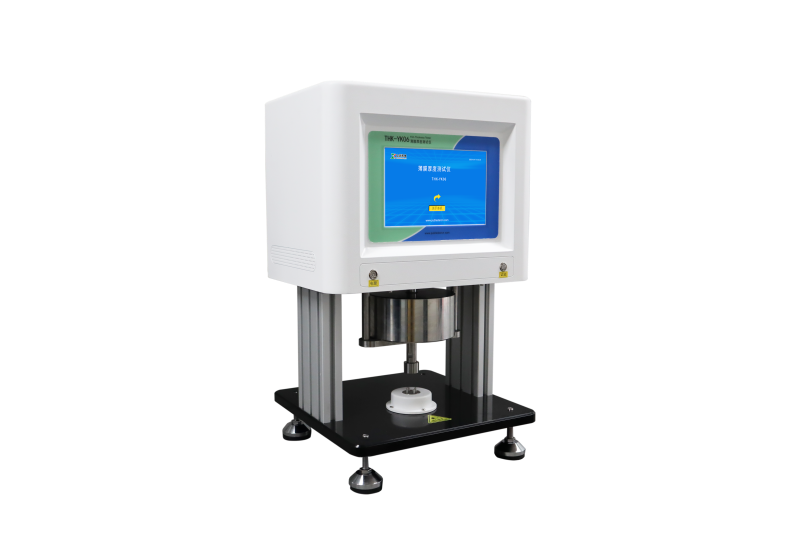

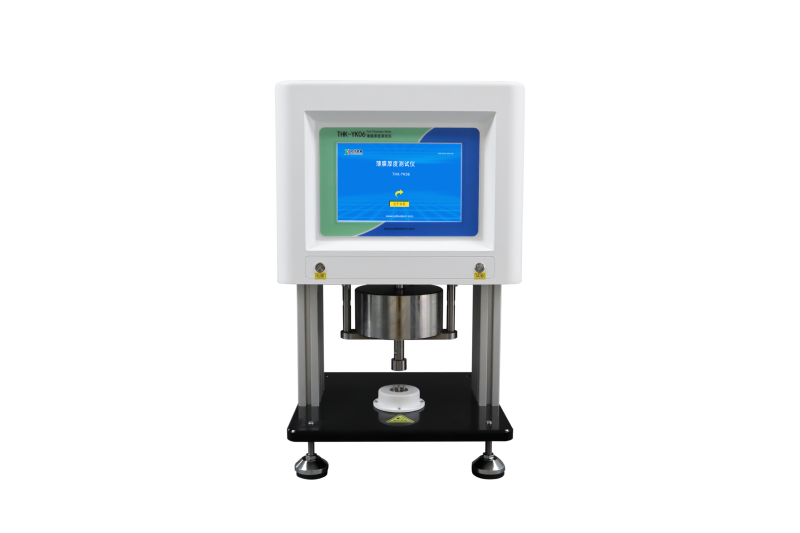

YKT-CH01 Dental Materials Thickness Tester
YKT-CH01 Dental Materials Thickness Tester adopts mechanical contacting method and uses high-precision measurement sensors imported from Japan's Mitutoyo, and is used for thickness measurement of dental materials.
Technical Features
Ø The contact area and measuring pressure are designed according to the standard, others can be customizable
Ø Adopting Japan Mitutoyo high-precision sensors with better repeatability
Ø A variety of test ranges are optional, supporting non-standard customization
Ø Automatic lifting of the measuring head avoids system errors caused by manual
Ø 10.1-inch HD color LCD touch screen, real-time display of test data
Ø Built-in micro printer, which can realize real-time historical data printing function
Ø Equipped with standard RS232 interface, which is convenient to PC connection and data transmission
Ø Standard thickness measurement tools can be used for calibration and inspection
Ø Real-time display of maximum, minimum, average and analytical data of the measurement results
Technical Specifications
Specifications | YKT-CH01 |
Vertical load | 150±2N (Smooth application without rotation) |
Accuracy of Sensor | 0.1μm |
Stage Size | 400mmx400mmx20mm |
Time | 0-9999.99S |
Time Accuracy | 0.1S |
Contact area of glass plate (square or round) | (200±25)mm² |
Size of square glass plate | 15mm |
Glass Thickness | 5mm |
Pin | 4pcs |
Pin Height | 7.5mm (1.5 times the thickness of a single glass plate) |
Gas Supply Pressure | 0.4-0.7MPA (Not in supply scope) |
Net Weight | 60kg |
Standards
YY 1042-2023, YY0271.1-2016, YY0271.2-2016, YY0272-2009, YY/T 0518-2009
Configuration
Standard configuration: Instrument, 10.1-inch Touch screen, Micro-printer, Vertical loading weights, Glass plates and Pins
