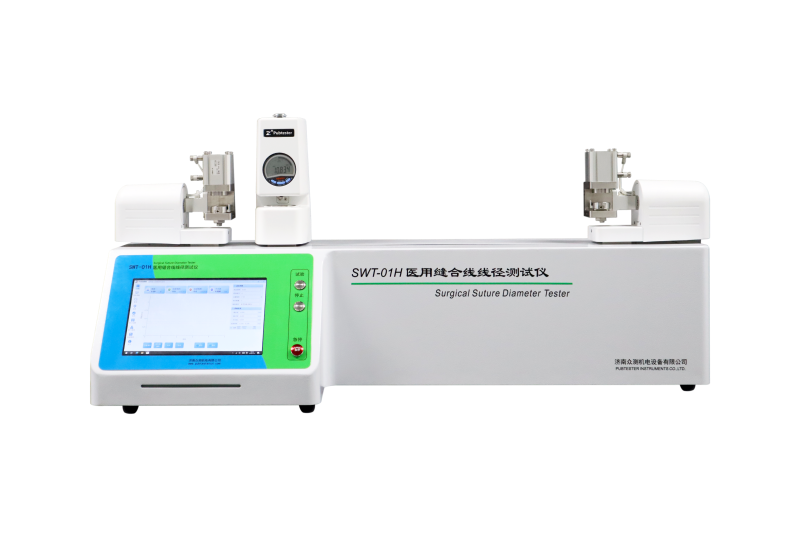

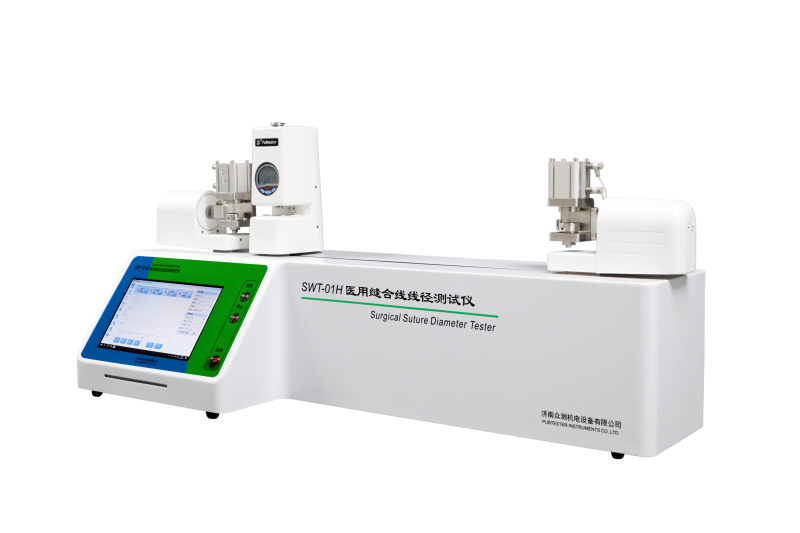

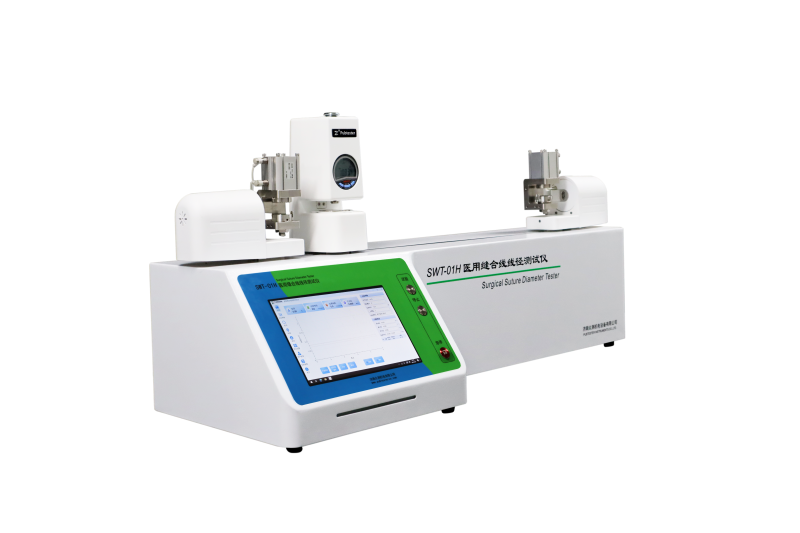

SWT-01H Surgical Suture Diameter Tester
SWT-01H Surgical Suture Diameter Tester, designed according to USP 861 (The United States Pharmacopeia), YY1116-2020, YY0167-2020, is used to determine the diameter of absorbable and non-absorbable surgical sutures suitable for suturing and ligating human tissues.
The instrument is easy to operate and user can complete the test process with one click through the menu, including automatic locking of sutures, automatic tension loading, automatic suture rotation, automatic measurement, data recording and report generation.
Product Features
Compliance
Ø Conforms to USP 861 (The United States Pharmacopeia), PRC YY1116-2020 (Absorbable surgical sutures), YY0167-2020 (Non-absorbable surgical sutures)
Ø Freely moved to multiple points with 1/4, 1/2 and 3/4 for measurement; multifilament sutures with specifications greater than metric size 2, the sutures can be rotated 90° and measured again without removing.
Stability
Imported Mitutoyo high-precision micrometers have the most extensive and authoritative reliability and accuracy recognition in the industry. With Mitutoyo's dedicated high-speed data cable, real-time data collection and transmission are achieved.
Convenience
Ø Machine runs automatically, set parameters and place the sample. The instrument completes the automatic locking, automatic tensioning, automatic measurement, report output and automatic reset of the suture. One cycle only needs 60-100 seconds.
Ø Imported Celtron high-precision load cell, with a tensioning force range of 0-58.8N and a tensioning accuracy of ≥0.03% (0.02N), no need to manually place the weights to realize the auto tensioning of the suture. Dual sensor configuration, strong structural stability, more accurate and stable force measurement.
Ø Suture automatic rotation module: Powered by two sets of SMC 90-degree rotary cylinders, which rotates the suture automatically that needs to be rotated 90 degrees test.
Intellectualization
Ø 10.1-inch capacitive touch screen for Win10 system.
Ø Touch operation: nominal specification, test load, print, test, left move, right move time, calibration.
Ø Recording of suture diameter data, output of data reports automatically, can be connected to a printer via Type-c or wireless remotely to print test results.
Ø With a powerful data storage function, which can store up to 1,000,000 test records.
Ø Support standardized and customized measurements: automatically call up the corresponding specifications and start measuring. Meanwhile, the measurement parameters can be customized and saved as needed, and can be retrieved anytime as needed.
Safety Protection
Ø Over-travel protection, overload protection, power failure memory for safe operation.
Data Security (optional)
Ø Equipped with a four-level user security password policy to ensure the security of test data.
Ø The computer software fully complies with the requirements of GMP "Computerized System" and has functions such as user management, authority management, and data audit tracking.
Technical Specifications
Specifications | SWT-01H |
Test Item | Suture diameter |
Nominal specification | 12-0… …10 All I , II, III medical sutures |
Single Filament Suture Length | ≥0mm |
Multifilament Suture Length | ≥250mm |
Test Range | 0～12.7mm |
Resolution | 0.0005mm/0.001mm/0.01 (optional) |
Test Accuracy | 0.002mm |
Diameter of presser foot | 12.7±0.02 mm |
Anvil Diameter | 50 mm |
Flatness of presser foot to anvil | ≤ ± 0.005mm |
Parallelism between presser foot and anvil | ≤1‰ |
Tensioning Force Range | 0～5000g, Accuracy: ±0. 1g |
Presser foot load on the suture | 210g±3g (≤ metric size 0.4 of suture, load ≤ 60g) |
Tension Sensor Range | 0～58.8N |
Tension Sensor Accuracy | ±0.03%F.S. |
Gas Supply | 0.4~0.8Mpa |
Power Supply | AC220V50Hz/120V60Hz |
Net Weight | 40kg |
Instrument Dimension | 1000mm(L)×350mm(W)×470mm(H) |
Standards
USP 861 (The United States Pharmacopeia),
YY1116-2020 (Absorbable surgical sutures),
YY0167-2020 (Non-absorbable surgical sutures).
Configuration
Standard Configuration: Instrument, 10.1-inch touch screen, wireless mouse and test fixture.
