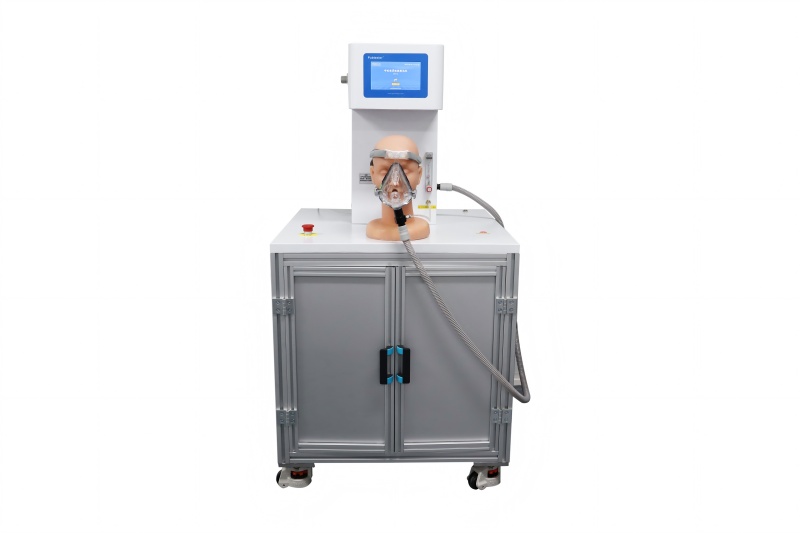

OPT-01 Respirator Mask Performance Tester
OPT-01 Respirator Mask Performance Tester, designed in accordance with ISO 17510-2015, YY0671.2-2021, is used for the resistance to flow (pressure drop) test, exhaust flow test, anti-asphyxia valve pressure test, determination of the inspiratory and expiratory resistance under single fault condition and the concentration change test of CO2 in rebreathing test of respirator masks.
The instrument consists of a breathing gas source with adjustable flow, a standard headform, an inspiratory and expiratory pipeline system, an airflow resistance measurement system, a breathing simulator, a micro printer, etc.
Product Features
Ø 7” colourful touch screen with intelligent data processing function
Ø Equipped with flow rate sensor, high sensitivity, a very small startup flow rate, zero point stability and accuracy, excellent repeatability, low power consumption, low pressure loss and fast response
Ø The micromanometer sensor adopts a two-wire system with high accuracy and good stability;
Ø The explosion-proof design is safe and reliable.
Technical Specifications
Specifications | OPT-01 |
Flow Rate Range | 10 L/min～200 L/min |
Accuracy | ±2% |
Pressure Range | 0-2000pa |
Pressure Resolution | 0.1pa |
Simulated breathing frequency modulation of breathing simulator | 10～40 c/min |
Simulated tidal volume range | 0.1～1L/min (settable) |
Volume fraction of CO2 | 5.0±0.1% |
Capnograph Range | 0～200000ppm |
Fan Speed | 0.5m/s |
Respiratory Frequency | 15 breaths/min (settable) |
Respiratory Tidal Volume | 0.5L |
Power Supply | 220V, 50Hz |
Net Weight | 55Kg |
Applications
Basic Application | Exhaust flow test |
Resistance to flow test |
Anti-asphyxia valve pressure test |
Inspiratory and expiratory resistance test |
CO2 rebreathing test |
Standards
ISO 17510-2015, YY0671.2-2021
Configuration
Standard Configuration: Instrument, 7-inch Touch Screen, Headform (1set), Breathing Simulator and Micro printer.
Note: Customers will need to prepare for gas supply (CO2).
