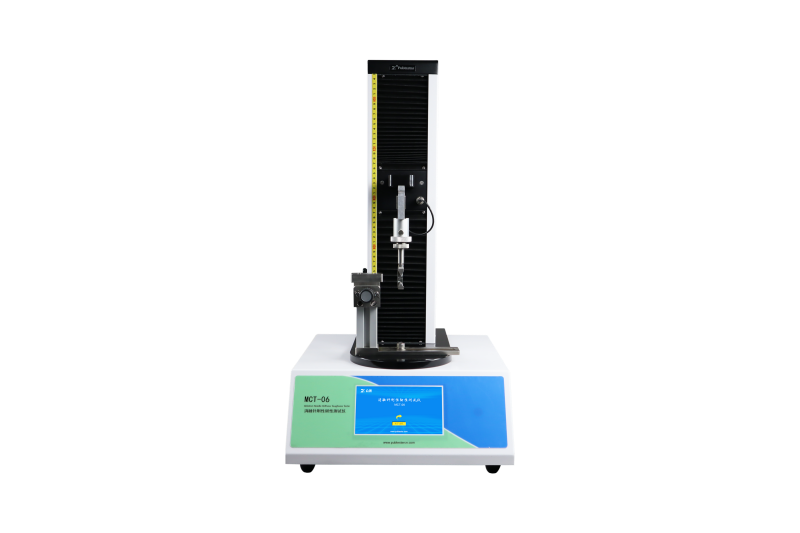

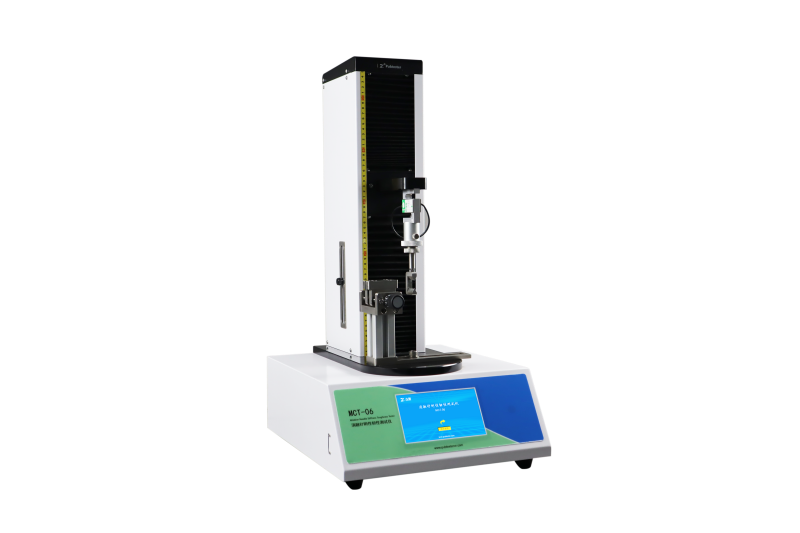

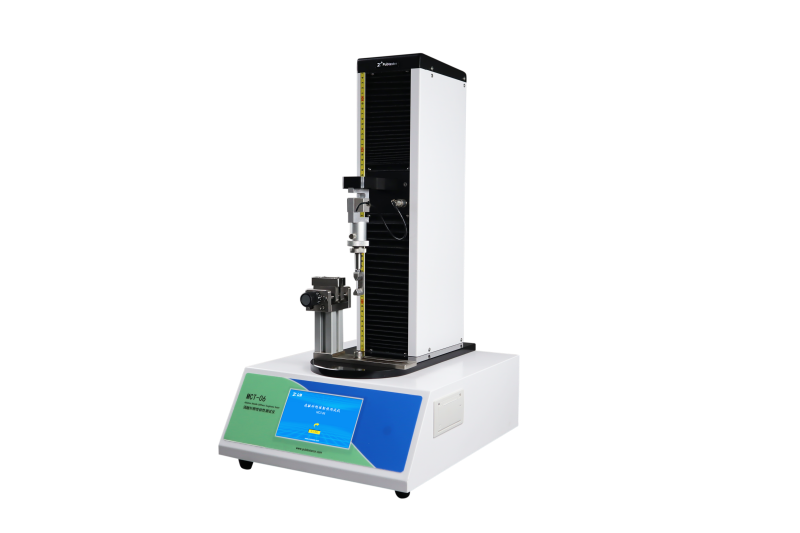

MCT-06 Ablation Needle Stiffness & Toughness Tester
MCT-06 Ablation Needle Stiffness & Toughness Tester, designed according to YY0899-2020, is used to test the stiffness and toughness of ablation needles.
Product Features
Ø 7-inch color touch screen with intelligent data processing functions
Ø Automatic calibration, easy operation process
Ø High-end motor and ball screw drive, stepless speed adjustment
Ø Equipped imported American load cell, which ensure high test accuracy and good stability
Ø The sensor is external, which is convenient for sensor replacement
Ø Stiffness: needle diameter Φ≥1.4 mm, the disturbance value is 30 mm; needle diameter Φ＜1.4 mm, the deflection value is to be determined, and the deflection range of 0~50 mm can be tested
Ø Dual test mode: stiffness and toughness
Ø Equipped with professional tooling, suitable for various ablation needles
Ø With powerful data storage function, which can store more than 100,000 test records
Ø With micro printer to print the test data
Ø Can print multiple test results, with statistical analysis function to output maximum, minimum and average values
Security protection
Ø Intelligent configurations such as limit protection, overload protection, automatic return, and power-off memory effectively ensure the user's operating safety
Ø Equipped with a limit protection switch to prevent displacement overload from causing fixture collision
Ø The software has an over-range shutdown function to effectively protect the sensor safety
Data Security
Ø Equipped with four-level user security password policy to ensure the security of test data
Ø The computer software fully complies with the GMP "Computerized System" requirements and has functions such as user management, authority management, and data audit tracking. (optional)
Technical Specifications
Specifications | MCT-06 |
Test Item | Stiffness, toughness |
Test Range | 0-50N |
Accuracy | 0.5% FS |
Resolution | 0.001N |
Testing Speed | 0.05-600mm/min |
Instrument Dimension | 460mm (L) x 400mm(W) x 770mm(H) |
Net Weight | 33.5Kg |
Power Supply | 220V/50Hz |
Standards
YY0899
Configuration
Standard configuration: Instrument, micro printer, touch screen, test fixture
