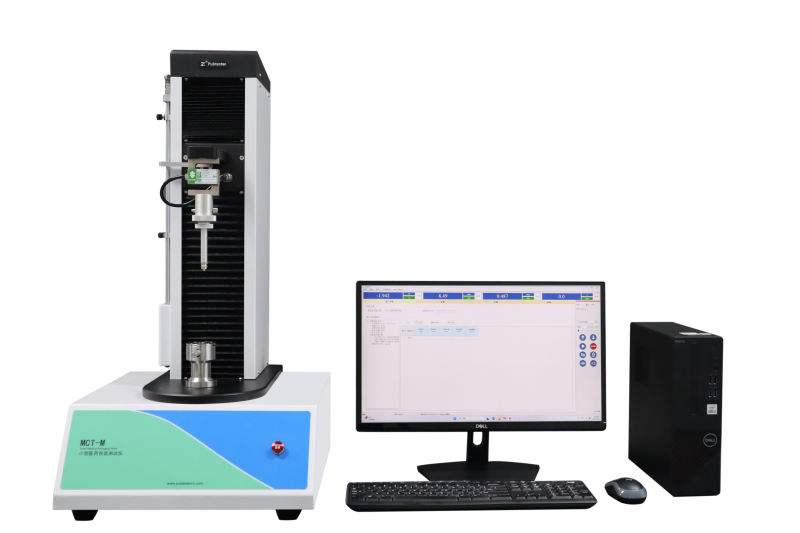

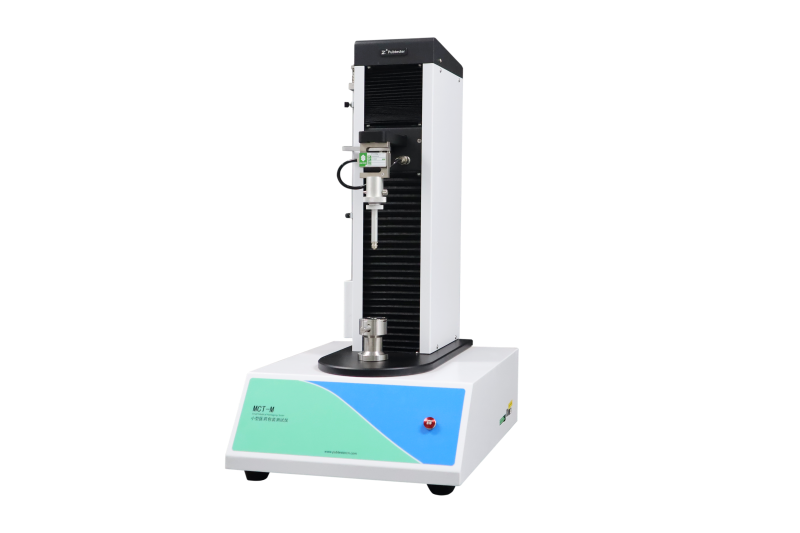

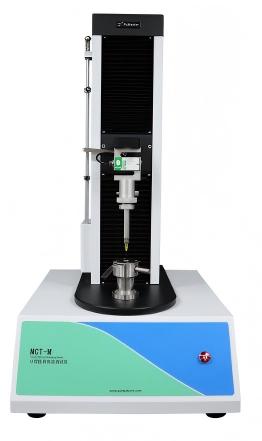

MCT-M Small Medical Packaging Tester
MCT-M Small Medical Packaging Tester is used for testing the break force, puncture force, sliding force, body tightness, opening force, tensile strength, heat-seal strength, peel strength and other tests of pharmaceutical packaging materials such as ampoule bottles, butyl plugs, aluminum-plastic composite caps, polypropylene composite caps, films, composite films, pharmaceutical aluminum foil, PVC rigid tablets, pen-type syringes, pre-filled syringes, needles, etc.
Technical Features
Ø High-precision imported sensor ensure more accurate test results
Ø The test speed can be infinitely variable
Ø Automatic calibration, easy to operation
Ø Support various specifications of sample needle testing
Ø With automatic data storage, power-off automatic memory function
Ø With professional software, test program can be edited and added
Ø Equipped with a handheld control box for auxiliary operation, which makes the test more convenient
Ø Equipped with standard RS232 interface, which is convenient to PC connection and data transmission
Ø The software data is traceable, which can realize functions such as multi-level authority management, audit trail, electronic signature, etc., which meets the requirements of GMP (optional)
Test Principle
The specimen clamped between two chuck and do relative motion. Conduct piercing or opening test through special clamp head. Collect the strength and displacement changes in the progress of test by force test and control system to calculate the corresponding force value data.
Technical Specifications
Specifications | MCT-M |
Test Range | 0~500N |
Resolution | 0.01N |
Accuracy | 0.5% FS |
Test Speed | 0.05-600mm/min |
Stroke | 300mm |
Instrument Dimension | 460mm (L) x 400mm(W) x 770mm(H) |
Net Weight | 33.5Kg |
Power Supply | 220V 50Hz |
Standards ISO 7864, ISO 7886, ISO 8871-5, USP 381, GB 15811-2016, GB18457-2015, YBB00092004-2015
Configuration
Standard configuration: Instrument Puncture test fixture, Professional Software, Communication Cable
Optional Parts: Load Cell, Other Test Grips (Fracture Strength Test of Ampoule Bottles, Connection Force Test between Hypodermic Needle and Needle Hub, Connection Force Test between Hypodermic Needle and Needle Cap, Sliding Resistance Test of Pistons, etc.)
