Blocking Performance Tester for Check Valves

LSST-06 Blocking Performance Tester, designed and manufactured with reference to "ISO 8536-12:2121, Infusion equipment for medical use-Part 12: Check valves for single use, MOD" and is suitable for check valves for fluid lines for use with pressure infusion equipment and accessories for single use.


Feedback
PRODUCTS
Contact Us
A3-2, Yinfeng International Biological City, Hi-tech East Zone, Jinan 250104, Shandong, China
+86-531-88983898/88983889
Sales01@pubtestercn.com, Sales02@pubtestercn.com
Product overview

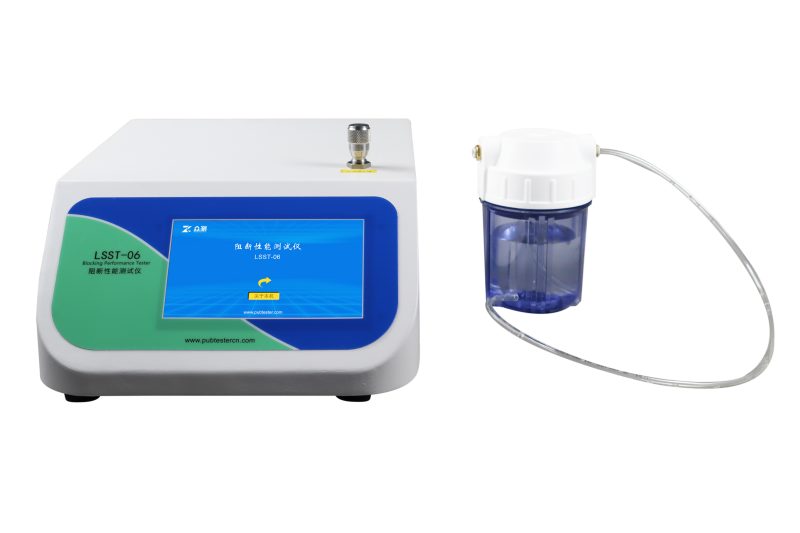

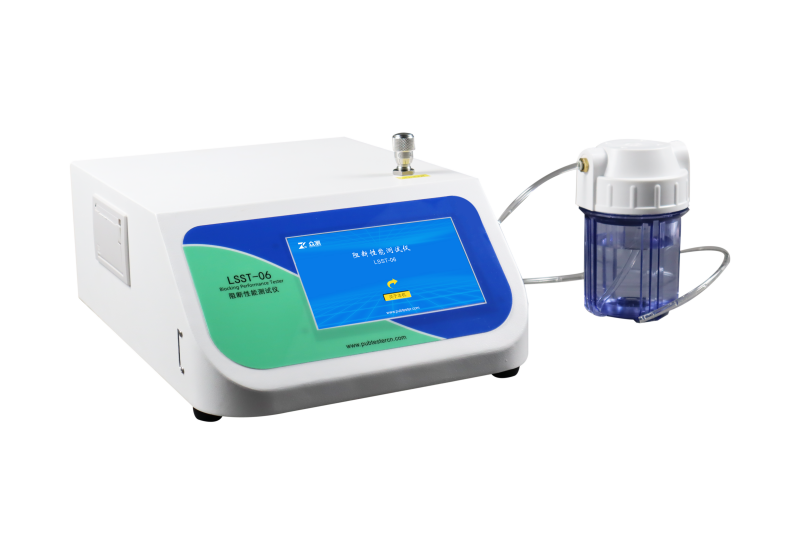

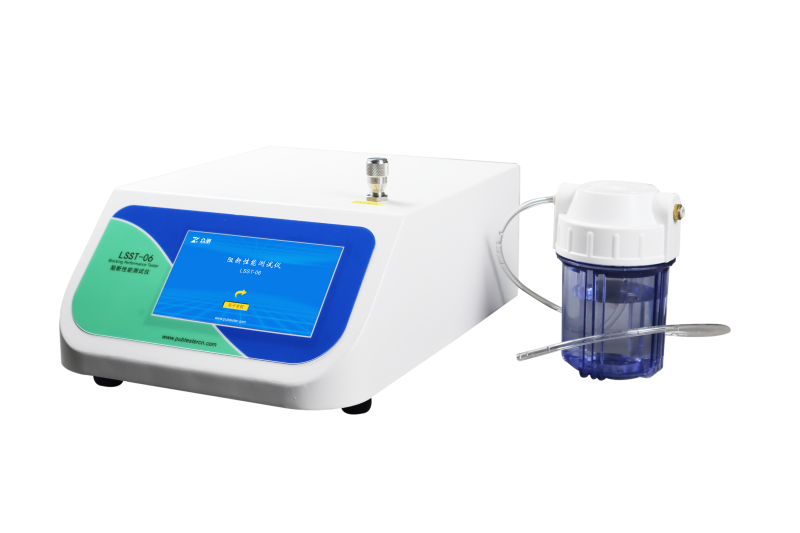

LSST-06 Blocking Performance Tester



LSST-06 Blocking Performance Tester, designed and manufactured with reference to "ISO 8536-12:2121, Infusion equipment for medical use-Part 12: Check valves for single use, MOD" and is suitable for check valves for fluid lines for use with pressure infusion equipment and accessories for single use.


Product Features

Ø Equipped with absolute pressure sensor and vacuum generator precision pressure test system, the test accuracy is greatly improved

Ø Pressure and time can be preset

Ø 7-inch color touch screen with intelligent data processing function

Ø Results are automatically determined and test data can be printed.

Ø Support historical data for quick viewing and printing.

Ø Built-in micro printer and powerful data storage function, which can store up to 50,000 test records

Ø Equipped with standard RS232 interface, which is convenient to PC connection and data transmission





Technical Specifications

Specifications

LSST-06

Test Range

0~10K pa (standard)

Accuracy

0.5% FS

Gas Supply Pressure

≤ 0.7MPa (Not in supply scope)

Port Size

Φ8mm PU tubing

Power Supply

AC 220V 50Hz/110V 60Hz

Dimensions

300mm(L)×410mm(W)×150mm(H)





Standards

YY0585.4



Configuration

Standard Configuration: Instrument, 7-inch touch screen, Micro printer, Pressure tank and sample holder.





Note: 1. The gas supply port of the instrument is Φ8 mm PU Tubing;

       2. Customers will need to prepare for gas supply.
