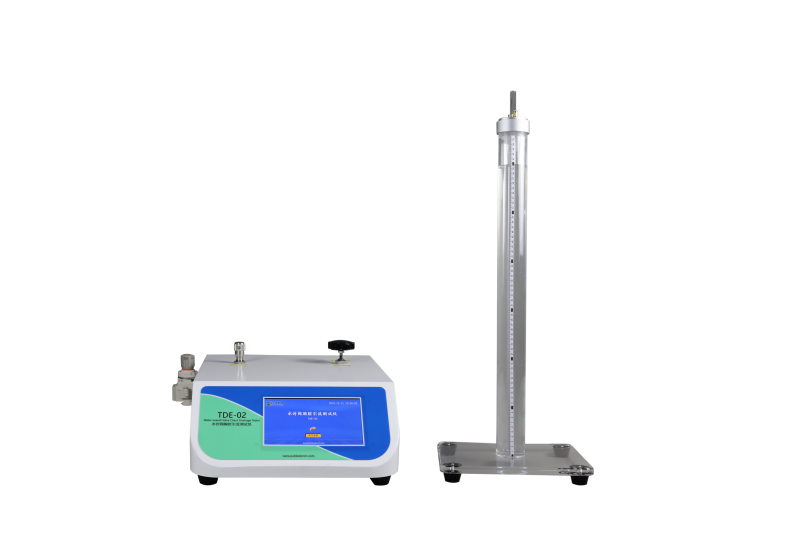

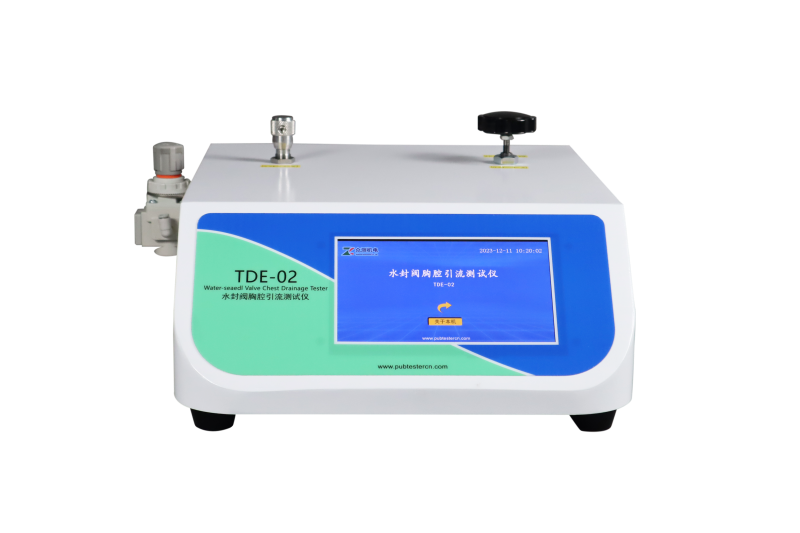

TDE-02 Water-sealed Valve Chest Drainage Tester
TDE-02 Water-sealed Valve Chest Drainage Tester is in accordance with the“YY/T 0583.1-2015 Disposable Chest Drainage Device The first part”standard provisions of design and manufacturing, suitable for testing the performance of water-sealed single-use chest drainage devices in terms of non-aqueous suction control error, water-seal retention, opening pressure, release rate, patient gas leakage and compliance.
Technical Features
Ø Equipped with adiabatic pressure sensors, vacuum generator precision pressure test system, the test accuracy is greatly improved.
Ø Embedded micro-computer chips, simplified and efficient user interface provide users with comfortable and smooth operating experience.
Ø 7-inch color touch screen with intelligent data processing functions providing users with a comfortable and smooth operating experience.
Ø Supports various test modes such as error measurement, retention, opening pressure, release rate, gas leakage, compliance, etc.
Ø Simplified and efficient user interface, convenient user-defined testing features, sophisticated data analysis and reporting capabilities.
Ø The result is determined automatically, the test data can be printed.
Ø Historical data can be quickly viewed and printed.
Ø The instrument comes with a micro-printer, and have a powerful data storage function, storing up to 50,000 test records.
Ø Equipped with standard RS232 interface, which is convenient to PC connection and data transmission.
Technical Specifications
Items | Specifications |
Test Range | -100～10 kPa (Standard) |
Pressure Accuracy | 0.5%FS |
Flow range | 0～1000 mL/min (Standard) |
Flow Accuracy | 0.5%FS |
Gas Supply Pressure | ≤ 0.7 MPa (Customer Provided) |
Port of Gas Supply | Φ6 mm Polyurethane Tubes |
Instrument Dimension | 390 mm (L) × 410 mm (W) × 190 mm(H) |
Power Supply | See nameplate |
Standards
YY0583.1-2015
Configuration
Standard configuration: Instrument, micro printer, gas source connector.
Note: 1.The gas connector of this instrument is Ф8mm PU Tubing;
2.Customers will need to prepare for gas supply.
