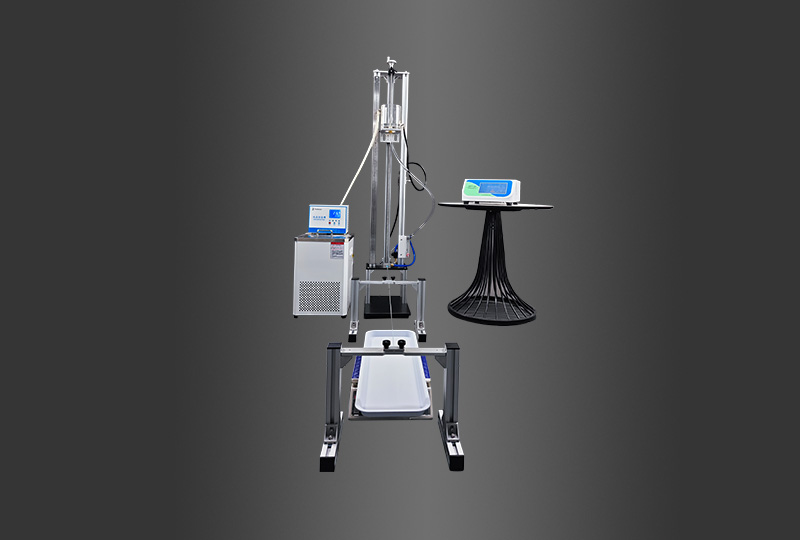

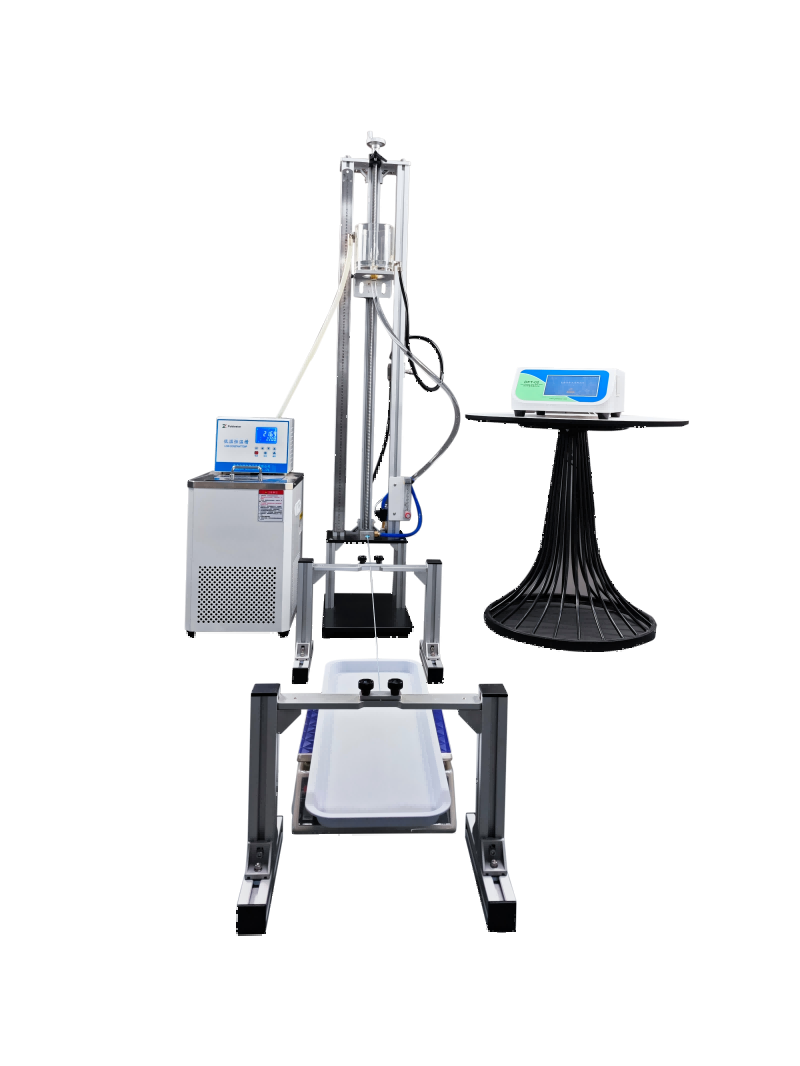

DFT-02 Auto Catheter Flow Rate Tester
DFT-02 Auto Catheter Flow Rate Tester is designed and manufactured according to Annex E of ISO 10555-1-2023, ISO8536-4, EN1618, etc.
It is suitable for the determination of the flow rate of water through the intravascular catheters, catheters other than intravascular catheters and infusion sets. It adopts a high precision balance and touch screen to weigh and calculate flow and print test results automatically.
Technical Features
Professional Technique
ØIndependent R&D of hydrostatic pressure test device, which ensures the liquid level of 1000±10mm and the height can be adjusted over a wide range.
ØTwo flow rate 525ml/min and 500ml/min are adjustable, which can meet the requirements of dual test standards.
ØEquipped with a constant temperature water tank to ensure that the test water temperature is 23 ℃, also the range is settable.

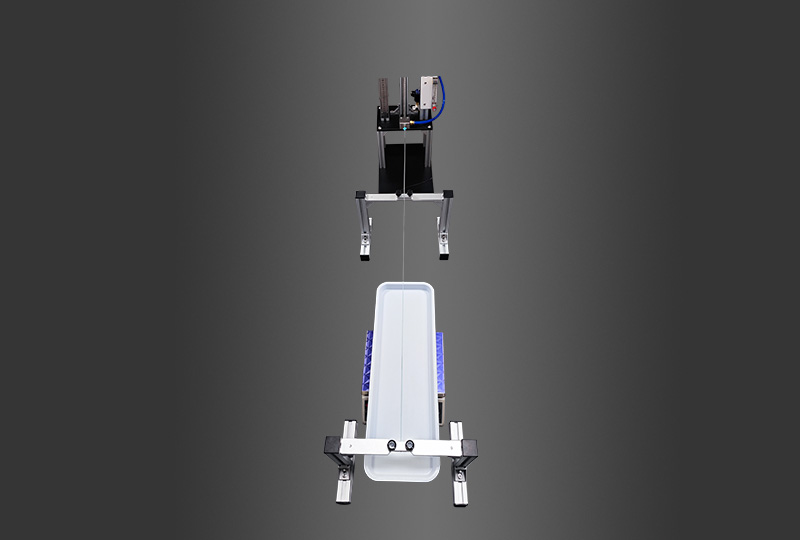

ØThe uniquely designed up and down lifting structure can be adjusted in height, which is convenient for testing under different water pressures
ØAutomatic timing and flow calculation
Ingenious design
Ø7-inch HD color LCD screen, display test data in real time
ØWith high-precision balance, which displays weighing data in real time, weigh outflow mass and calculate flow rate automatically
ØMultiple units are optional, and flow output units L/min, g/min, etc. can be displayed
ØWith powerful data storage function, and can store up to 100,000 test records.
ØAutomatic result determination, and printable test data
ØSupports historical data for quick viewing and printing
Data Security
ØEquipped with a four-level user security password policy to ensure the security of test data
ØThe computer software fully complies with the requirements of GMP "Computerized System" and has functions such as user management, authority management, and data audit tracking.
Technical Specifications
Specifications | DFT-02 |
Balance Range | 0 - 3000g |
Accuracy | 0.1g |
Flow Rate | 525mL/min, 500ml/min |
Speed Deviation | 3mL/min |
Test Time | 1～99999s (Setting freely) |
Time Deviation | ≤ ± 1 |
Temperature | 15-55℃ |
Temperature Deviation | ≤ ±1℃ |
Power Supply | 220VAC 50Hz / 120VAC 60Hz |
Dimensions | 420(L) x 280(W) x 1680(H) |
Net Weight | 75Kg |
Applications
Basic Applications | Intravascular catheters |
Catheters other than intravascular catheters |
Extended Applications | Infusion set |
Standards
ISO 10555-1-2023, ISO8536-4, EN1618, GB15812.1, YY0285.1, GB8368
Configuration
Standard configuration: Instrument, 7-inch touch screen, Hydrostatic head, height adjustment device, constant temperature water tank
