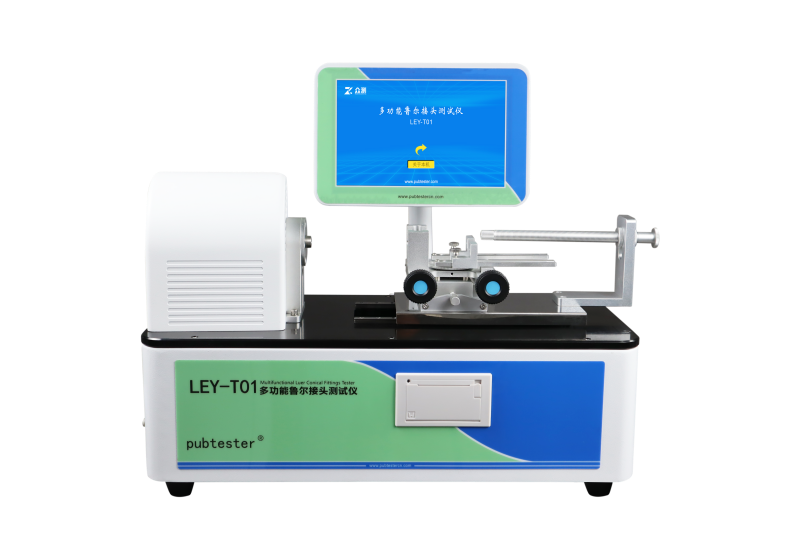

LEY-T01 Multifunctional Luer Conical Fittings Tester
LEY-T01 Multifunctional Luer Conical Fittings Tester is suitable for testing the locking and non-locking Luer connectors of infusion sets, infusion needles, syringes, injection needles, blood transfusion sets, anesthesia filters and various intravascular catheters, non-intravascular catheters.
Product Features
Ø Magnetic shield that wraps the rotating roller for safety
Ø Slip ring between torque sensor and rotating roller to ensure the accuracy of torque test
Ø American imported load cell, which the accuracy can up to 0.5% FS
Ø 7-inch color touch screen with intelligent data processing function
Ø Automatic calibration, easy operation
Ø Supports various sample specifications
Ø Automatic data storage, power-down memory function
Ø Powerful data storage function, which can store up to 100,000 test records
Ø The computer software fully complies with the GMP "Computerized System" requirements and has functions such as user management, authority management, and data audit tracking.
Ø The latest Arm chip system, which is more intelligent than PLC
Ø Multiple test items, include liquid and air leakage, separation force, unscrewing torque, ease of assembly, resistance to overriding and stress cracking of syringes and hypodermic needles. And display the applied axial force, torque, holding time, internal water pressure, separation force and leakage rate value during the test.
Technical Specifications
Specifications | LEY-T01 |
Axial Force | 0-100N |
Accuracy | The error is no more than ±0.5% of reading |
Internal Water Pressure | 0Kpa - 600Kpa |
Accuracy | The error is no more than ±0.5% of reading |
Negative Pressure | -90kpa ~ 0kpa |
Accuracy | The error is no more than ±0.5% of reading |
Torque | 0.01N•m ~ 0.50N•m |
Accuracy | The error is no more than ±0.5% |
Separation Force | 20-40N (0-100N) |
Accuracy | The error is no more than ±0.5% |
Power Supply | AC220V, 50Hz |
Dimensions | 580mm(L) ×280 mm(W) ×510 mm(H) |
Net Weight | 28Kg |
Standards
ISO 80369-7-2016, ISO 80369-20-2015, GB/T1962.1 -2015, GB/T1962.2-2001, YY/T 0916.20-2021
Configuration
Standard Configuration: Instrument, micro printer, touch screen, Gas & liquid reservoir, standard connectors (1 set).
