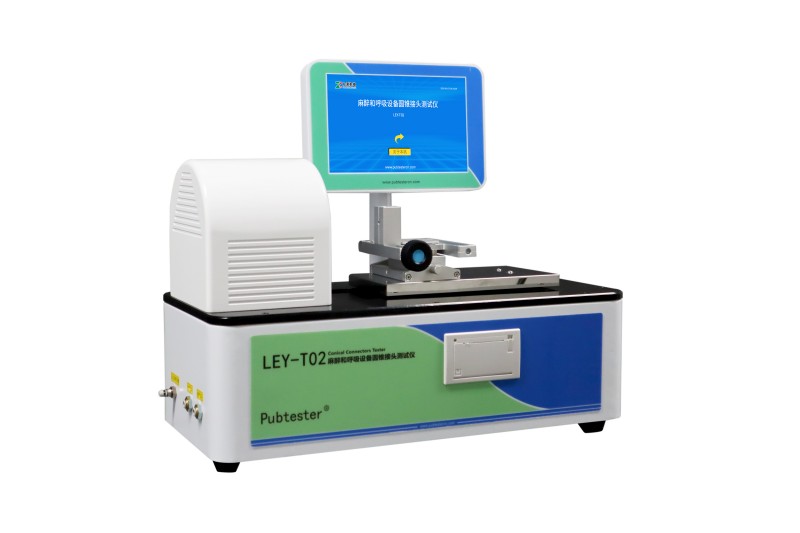

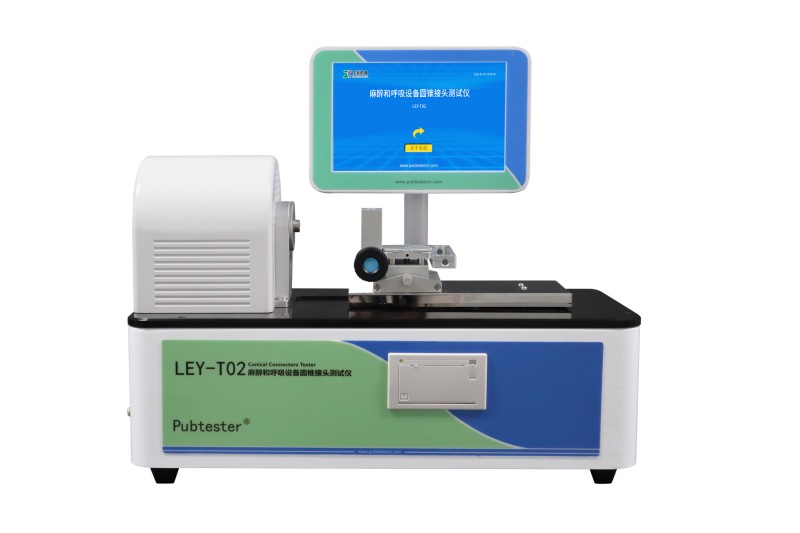

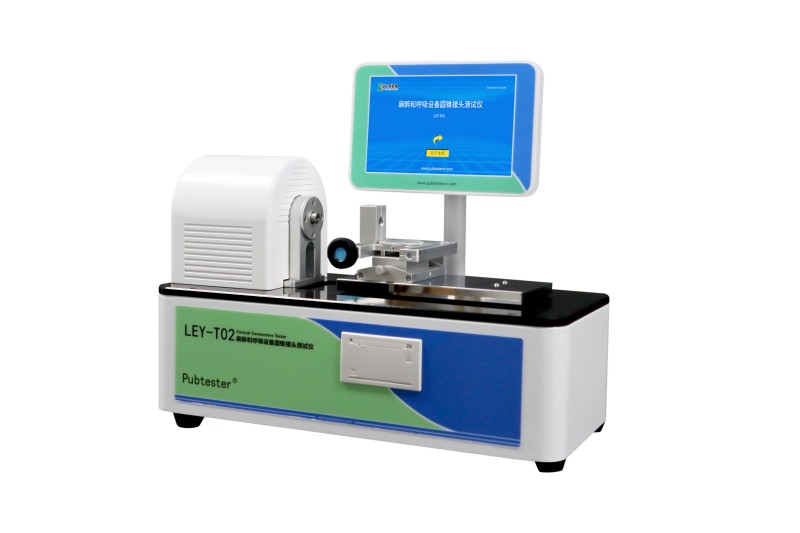

LEY-T02 Anaesthetic and Respiratory Equipment Conical Connector Tester
LEY-T02 Anaesthetic and Respiratory Equipment Conical Connector Tester is used to test the liquid and air leakage, separation force, unscrewing torque, ease of assembly, resistance to overriding and stress cracking, positive pressure liquid leakage and subatmospheric pressure air leakage of conical connectors used in anesthesia and respiratory equipment.
Product Features
Ø Magnetic shield that wraps the rotating roller for safety
Ø Slip ring between torque sensor and rotating roller to ensure the accuracy of torque test
Ø American imported load cell, which the accuracy can up to 0.5% FS
Ø 7-inch color touch screen with intelligent data processing function
Ø Automatic calibration, easy operation
Ø Supports various sample specifications
Ø Automatic data storage, power-down memory function
Ø Powerful data storage function, which can store up to 100,000 test records
Ø The computer software fully complies with the GMP "Computerized System" requirements and has functions such as user management, authority management, and data audit tracking.
Ø The latest Arm chip system, which is more intelligent than PLC
Technical Specifications
Specifications | LEY-T02 |
Axial Force | 0-100N |
Accuracy | The error is no more than ±0.5% of reading |
Internal Water Pressure | 0Kpa - 600Kpa |
Accuracy | The error is no more than ±0.5% of reading |
Negative Pressure | -90kpa ~ 0kpa |
Accuracy | The error is no more than ±0.5% of reading |
Torque | 0.01N•m ~ 0.50N•m |
Accuracy | The error is no more than ±0.5% |
Separation Force | 20-40N (0-100N) |
Accuracy | The error is no more than ±0.5% |
Power Supply | AC220V, 50Hz |
Dimensions | 580mm(L) ×280 mm(W) ×510 mm(H) |
Net Weight | 28Kg |
Standards
ISO 5356-1:2015, YY1040.1-2015, YY0461-2003.
Configuration
Standard Configuration: Instrument, micro printer, touch screen, Gas & liquid reservoir and professional cone chuck fixture
