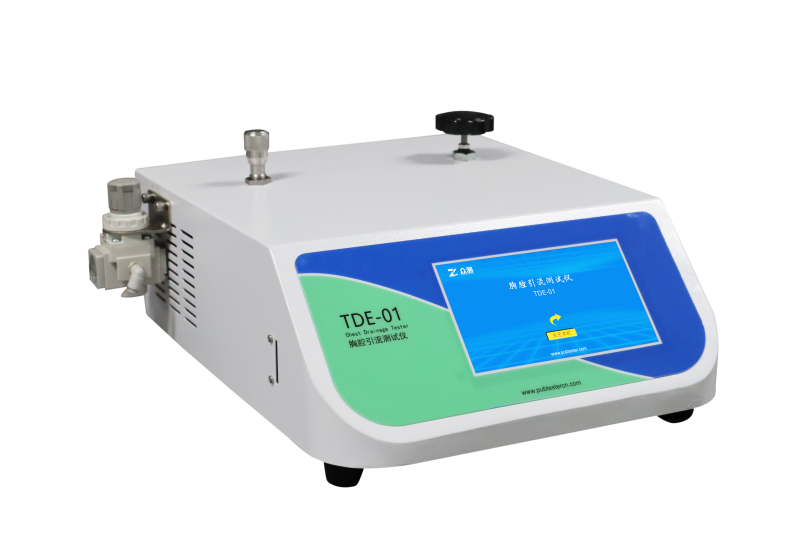

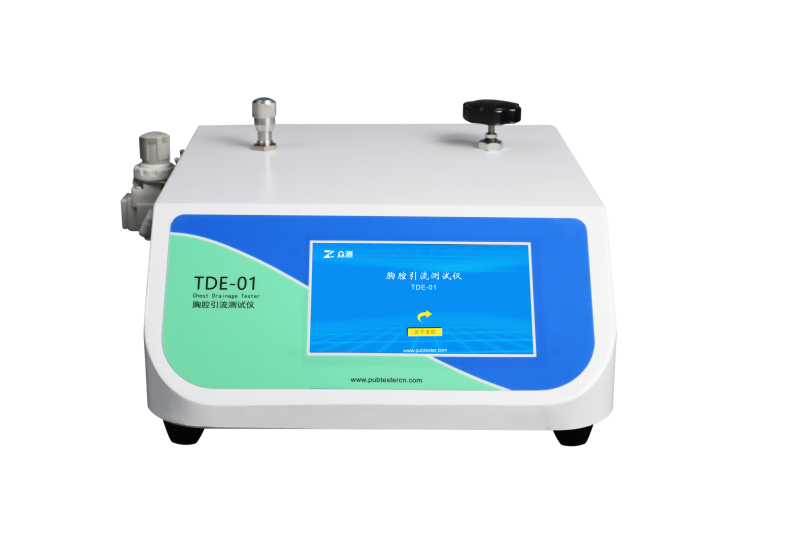

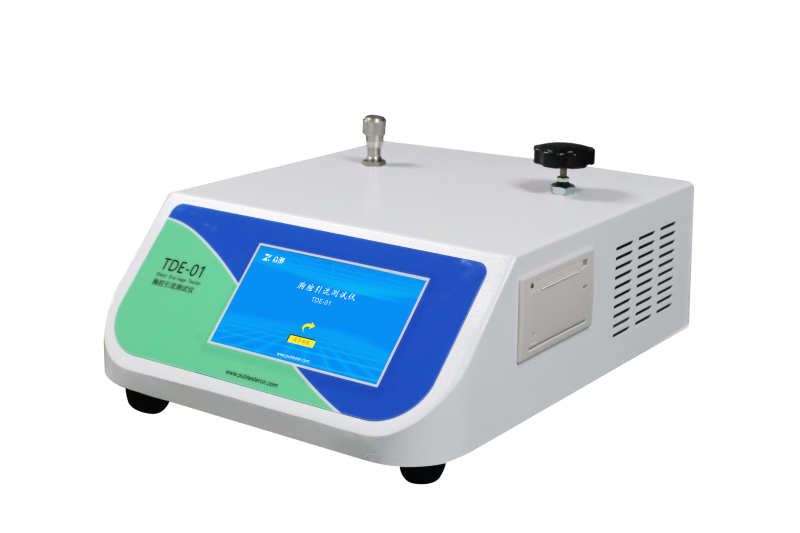

TDE-01 Chest Drainage Tester
TDE-01 Chest Drainage Tester is in accordance with the “YY/T 0583.2-2016 Disposable Chest Drainage Device the second part: Dry seal valve” standard provisions of design and manufacturing, it suitable for testing the negative pressure status monitor of dry-seal valve-type disposable chest drainage device, opening pressure, closing performance, and the performance of high negative pressure automatic release valve.
Technical Features
Ø Equipped with adiabatic pressure sensors, vacuum generator precision pressure test system, the test accuracy is greatly improved.
Ø Embedded micro-computer chips, simplified and efficient user interface provide users with comfortable and smooth operating experience.
Ø 7-inch color touch screen with intelligent data processing functions providing users with a comfortable and smooth operating experience.
Ø Simplified and efficient user interface, convenient user-defined testing features, sophisticated data analysis and reporting capabilities.
Ø The result is determined automatically, the test data can be printed.
Ø Historical data can be quickly viewed and printed.
Ø The instrument comes with a micro-printer, and have a powerful data storage function, storing up to 50,000 test records.
Ø Equipped with standard RS232 interface, which is convenient to PC connection and data transmission.
Technical Specifications
Items | Specifications |
Test Range | -100～10 KPa (Standard) |
Test Accuracy | 0.5%FS |
Gas Supply Pressure | ≤ 0.7 MPa(Customer Provided) |
Port of Gas Supply | Φ6 mm Polyurethane Tubes |
Instrument Dimension | 390 mm (L) × 410 mm (W) × 190 mm(H) |
Standards
YY0583.2
Configuration
Standard configuration: Instrument, micro printer, gas source connection.
Note: 1.The gas connector of this instrument is Ф8mm PU Tubing;
2.Customers will need to prepare for gas supply.
