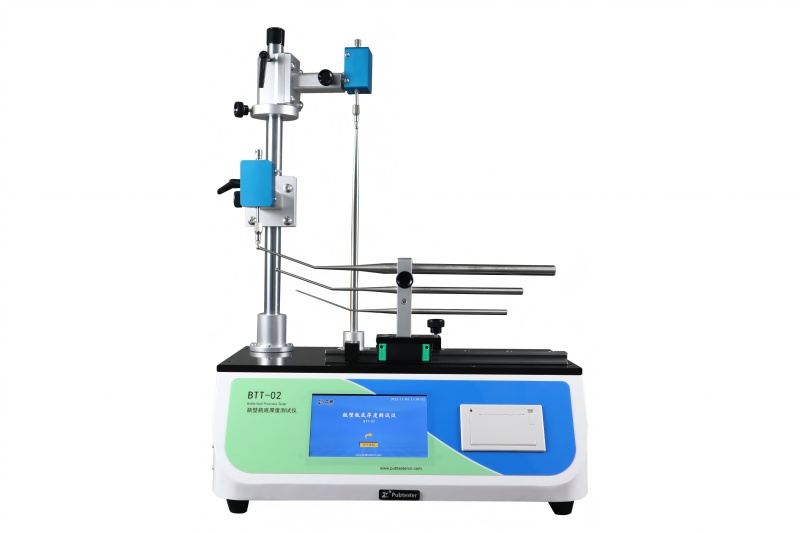

BTT-02 Bottle Sidewall & Bottom Thickness Tester
Brief Introduction
BTT-02 Bottle Sidewall & Bottom Thickness Tester is used for test sidewall and bottom thickness of ampoules, vials, infusion bottles, beer bottles, plastic bottles in food, medicine, cosmetics and other industries.
Technical Features
Specialty design
Ø Dual test functions: sidewall and bottom thickness;
Ø 7-inch color touch screen with intelligent data processing functions;
Ø Equipped with a micro printer to print each test result and statistical Max. value, Min. value and average value;
Ø Using high-speed processing chips, the operating speed is greatly improved;
Ø Adopt electronic high-precision displacement sensor;
Ø Calibrate automatically;
Ø Equipped with standard RS232 interface, which is convenient to PC connection and data transmission;
Ø Pubtester also provides professional customization services to meet users’ personalized needs in fixtures, software, etc.;
Ø Equipped with three measuring rods, suitable for different bottles;
Ø Various rotation and distance adjustment mechanisms adopt convenient knob and guide rail structures to facilitate operation and improve testing efficiency;
Ø With a powerful data storage function, which can store up to 100,000 test records
Ø Data export device (Optional).
Safety Protection
Ø Intelligent configurations such as limit protection, overload protection, and power-off memory effectively ensure safety operation;
Ø Equipped with a limit protection switch to prevent clamp collision caused by displacement overload;
Ø With an over-range shutdown function to protect the sensor.
Data Security
Ø Equipped with a four-level user security password to ensure the security of test data (optional);
Ø The computer software fully complies with the GMP "Computerized System" requirements and has user management, authority management, data audit tracking, electronic signature, etc. (optional).
Applications
Basic Application | Ampoules, vials, oral liquid bottles, infusion bottles, etc. |
Liquor bottles, wine bottles, etc. |
Plastic bottles, preforms, etc. |
Beer bottles |
Technical Specifications
Specifications | BTT-02 |
Thickness Range | 0-10mm |
Accuracy | ±0.1%FS |
Resolution | 0.001mm |
Repeatability | 0.01mm |
Specimen Diameter | 10 ~ 120mm (Customizable) |
Specimen Height | 10 ~ 300mm (Customizable) |
Power Supply | AC 220V 50Hz/120V 60Hz |
Instrument Dimension | 500mm(L)×300mm(W)×685mm(H) |
Net Weight | 23kg |
Standards
GB/T 2641, GB2637, GB/T 2639, GB12415, YBB00332002-2015, YBB00332003-2015, YBB00032004-2015
Configurations
Standard: Instrument, 7” touch screen, Measuring rod (sidewall and bottom), Micro printer.
