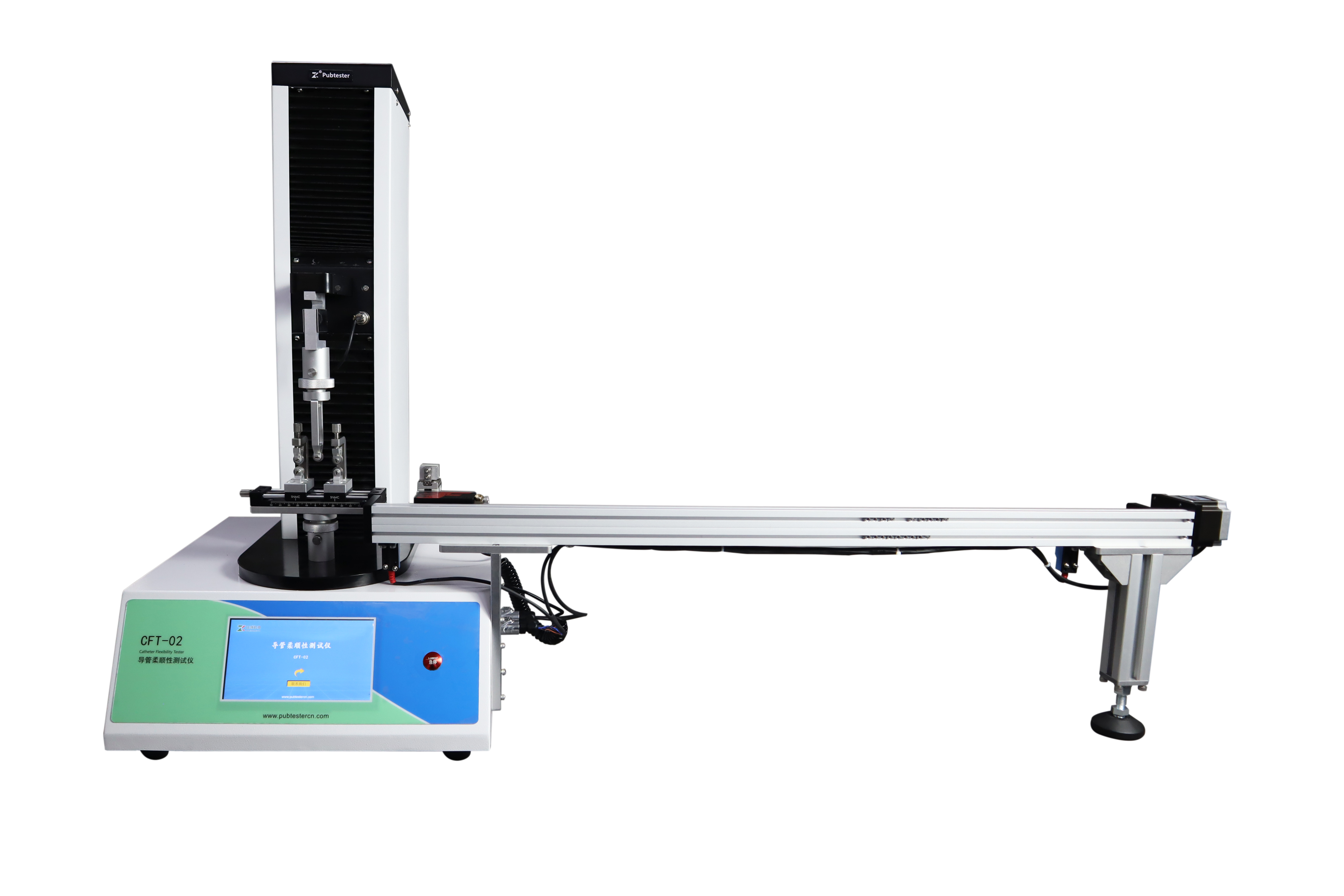

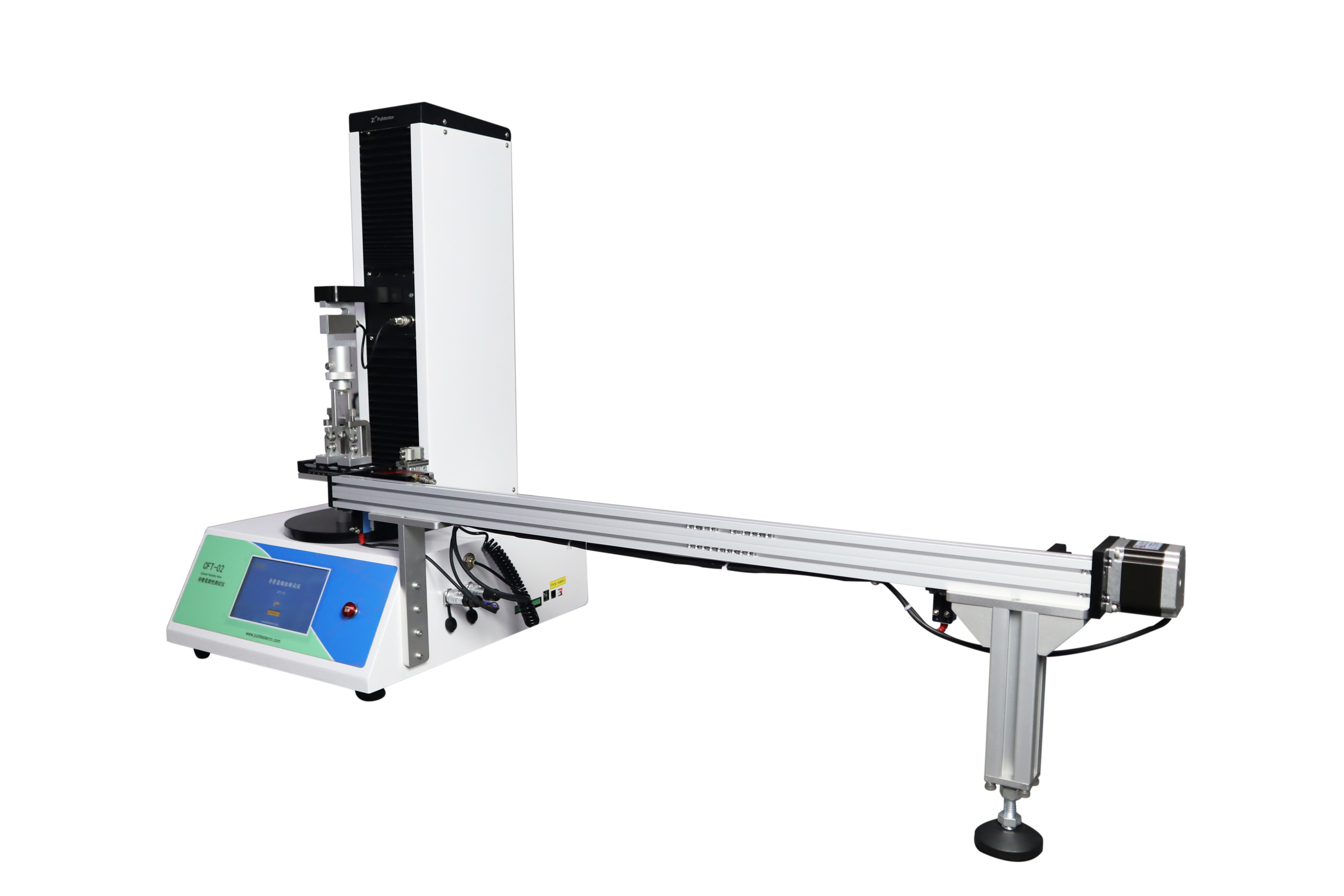

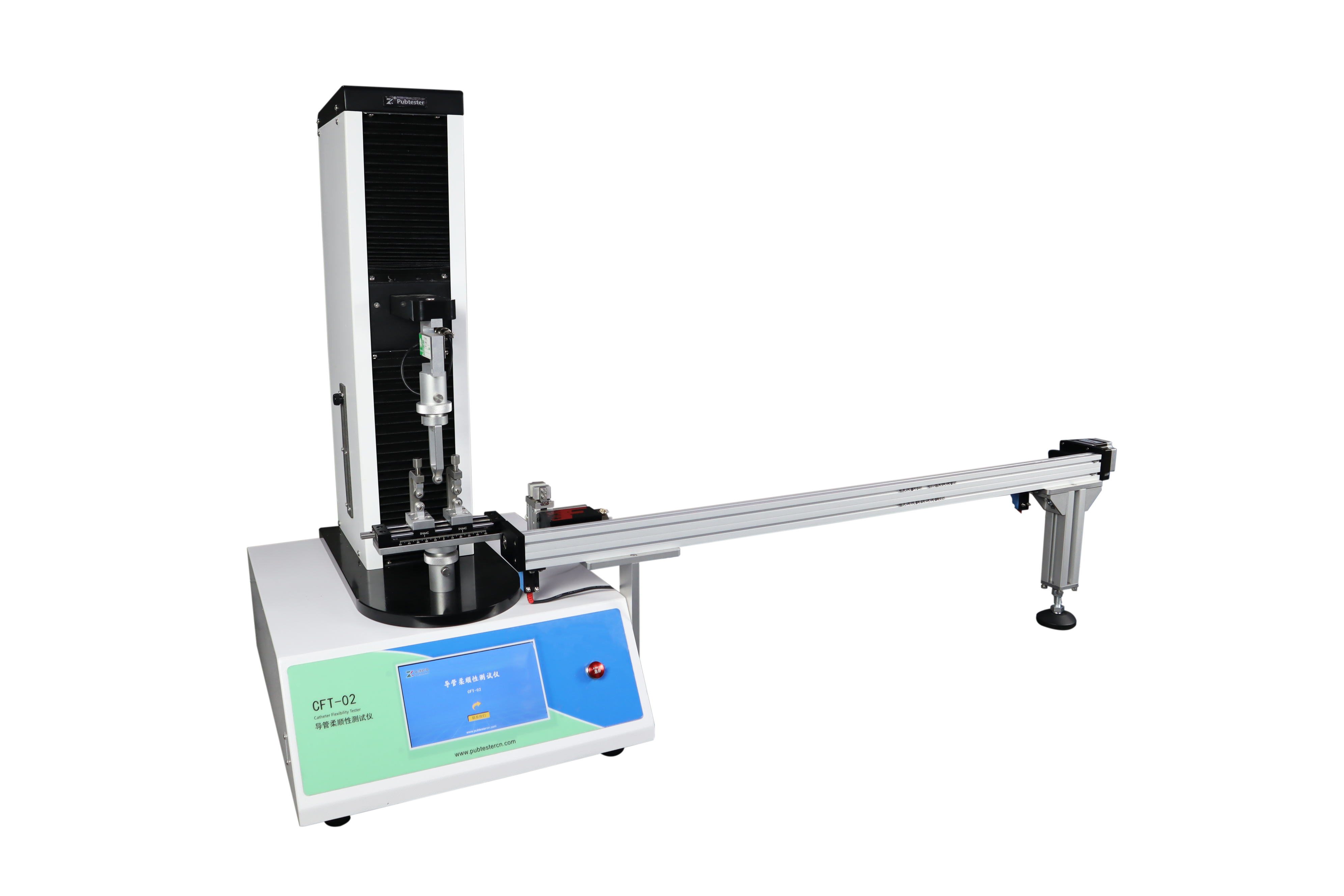

CFT-02 Catheter Compliance Tester
CFT-02 Catheter Compliance Tester is used to determine the compliance and hardness testing of interventional catheters and guidewires, and professionally used to simulate and monitor the force displacement data of the catheter during advancement in the blood vessel.
Technical Features
Professionalism
Ø7-inch color touch screen with intelligent data processing function
ØSimple operation interface, convenient user-defined test function and complete data analysis and reporting function
ØDual system control, each system parameter can be set independently, equipped with software, can generate test reports
ØAutomatic calibration, simple operation process
ØImported high-precision force sensor, stable test and long service life
ØCan be matched with force sensors of various specifications to achieve different test requirements
ØExclusively designed professional test tooling, convenient sample clamping and high test efficiency
ØHigh-precision ball nut screw with new guide column and guide sleeve transmission structure makes the system run more smoothly
Ø0.5% FS high-precision force sensor, ensuring the accuracy and repeatability of test results
ØEquipped with advanced displacement control system, the accuracy can reach 0.1mm
ØSupports samples of various specifications
ØWith a powerful data storage function, storing up to 100,000 test records
ØMicro printer and standard RS232 interface, which is convenient to PC connection and data transmission
Safety Protection
ØLimit protection, overload protection, automatic return, and power-off memory, etc., ensure the user's operating safety
ØEquipped with a limit protection switch to prevent displacement overload from causing fixture collision
ØThe software has an over-range shutdown function to protect the sensor
ØWith an emergency stop switch to ensure a safe and effective test process
Data Security
ØEquipped with a four-level user security password policy to ensure the security of test data
ØThe computer software complies with the requirements of GMP "Computerized System" and has functions such as user management, authority management, and data audit tracking.
Applications
Basic Applications | Thrombectomy Catheter |
Intravascular Catheter |
Extended Applications | Intravascular guidewire |
Technical Specifications
Specifications | CFT-02 |
Test Range | 0 ~ 50N or 100N |
Resolution | 0.01N |
Test Stroke | Vertical: 0 ~ 300mm Horizontal: 0~ 700mm |
Test Speed | 0~10 mm/s |
Catheter Diameter | 0 ~ 3.3mm (customizable) |
Span Adjustment Range | 25-75mm |
Clamping Way | Pneumatic |
Gas Supply Pressure | 0.5~0.7MPa (Not in supply scope) |
Port of Gas Supply | Φ6 mm PU Tubing |
Dimension | Instrument: 1265 mm(L)× 400mm(W)× 770mm(H) |
Power Supply | AC 220V 50Hz/ AC 110V 60Hz |
Net Weight | 37Kg |
Standards GB/T 9341-2008, ISO 178-2001
Configuration
Standard configuration: Instrument, 7inch touch screen, Pulley block clamping tooling, Horizontal traction module, Pneumatic chuck.
Note: 1.The gas supply port of the instrument is Φ6 mm PU Tubing;
2. Customers will need to prepare for gas supply.
