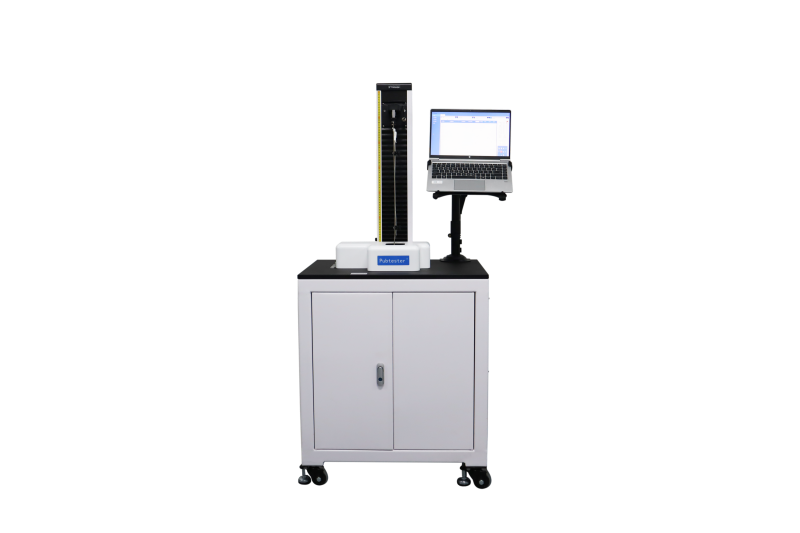

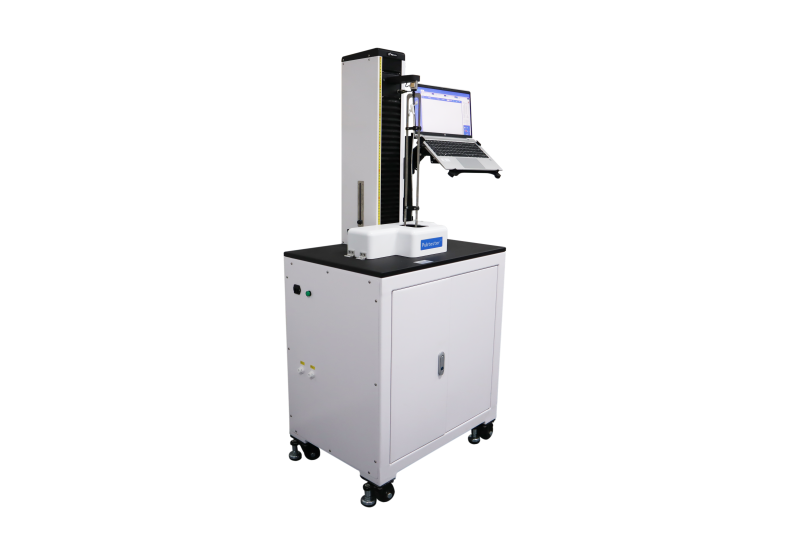

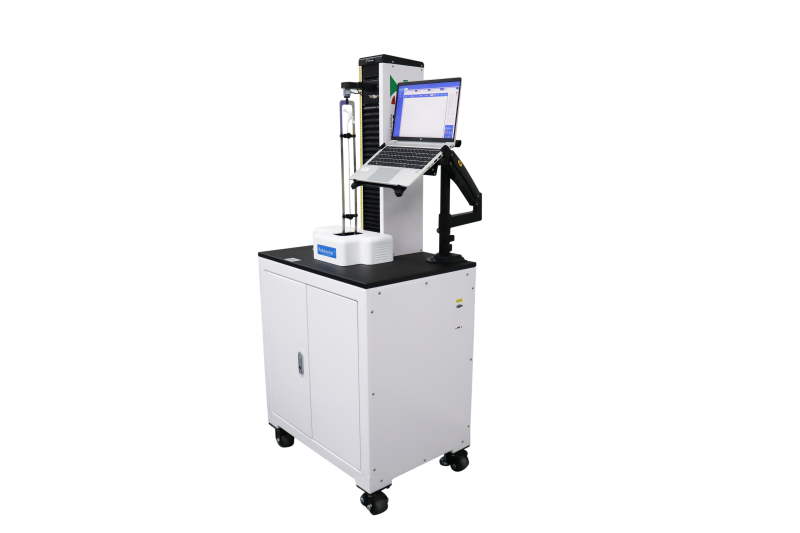

PSPT-03 Catheter Friction Performance Tester

PSPT-03 Catheter Friction Performance Tester is specialized in testing the fastness of the hydrophilic coating, surface sliding performance/lubricity, coating friction and coefficient of friction of intravascular catheters, non-vascular catheters, guidewires, etc., such as urinary catheters, drainage tubes, tracheal intubation tubes, balloon catheters, etc.

Technical Features

Professional Design

Ø Unique cyclic friction test mode, and supports multiple one-way up and multiple one-way down test modes

Ø Support friction times setting to meet multiple friction tests

Ø Static friction, kinetic friction, static coefficient of friction , kinetic coefficient of friction can be tested for one time

Ø Automatic clamping device, the force is settable freely, to ensure the stability of the test

Ø Adopt circulating water bath temperature control design to realize the test under different temperature conditions.

Ø Silicone pads of standardized hardness to provide a test environment close to human tissue.

Ø Small range sensor to ensure the accuracy of test data

Ø The equipment supports one-key automatic water supply and drainage function, which ensures a clean water bath environment

Ø 0.5%FS high-precision testing, effectively ensures the accuracy and repeatability of test results

Ø Equipped with advanced displacement control system, displacement accuracy can up to 0.1mm

Ø With advanced drive system, which can achieve infinitely variable speed and wider test speed range to meet different test conditions

Safety Configuration

Ø Intelligent designs of over-travel protection, overload protection, automatic position reset and power failure memory for safe test operation.

Ø Equipped with UL certified Schneider emergency stop button to maximize the safety of human and machine during the test

Ø Real-time monitoring of system status to ensure that the equipment is always in the best operating status

Professional software

Ø Equipped with four levels of user security password to ensure the security of test data

Ø The software data is traceable, which can realize functions such as user management, rights management, data audit trail, etc., which meets the requirements of GMP (optional).

Ø Equipped with a standard serial communication port, which can be connected to computer software to facilitate data processing and transmission

Ø Pubtester also provides professional customization services to meet the individual needs of users in fixtures, software, etc.

Ø Free software upgrade lifetime.

Technical Specifications

Test Principle

Installation of catheter clamps in the clamping slots of the clamping system. Adjust the spacing between the two sliding clamps to the specified clamp spacing and then tighten the clamping tabs, ensure that the catheter clamps maintain a good fit. The end of the test catheter is passed from bottom to top through the two catheter clamping tabs, and the upper clamp of the tester holds the head of the catheter. Insert the rest of the catheter into the drum filled with water, hang naturally and soak for the manufacturer's recommended time. Adjust the position of the two sliding clamping blocks in the slots, let the catheter in the central position. Start the tester so that the catheter passes through the silicone sheet a sufficient distance, record force versus displacement curves. Take the average force value of the wetted section of the catheter body on the curve to report the results.

Standards

T-CAMDI 021-2019 Single-use hydrophilic coated guidewire

YY/T 1898-2024 Intravascular catheter and guidewire - Testing method for fastness of the hydrophilic coating

YY/T 1536-2017 Catheters other than intravascular catheters-standard test model for evaluating the surface sliding performance

Configuration

Standard Configuration: Instrument, Water bath temperature control device, Automatic clamping device, Silicone Catheter pads, Professional fixture, Professional software and communication cable.

Optional Parts: Non-standard fixture (customized).
