Pressure Transfer Flow Tester

HRT-03 Pressure Transfer Flow Tester, designed in accordance with standards GB/T 19335-2022 and YY/T 0328-2015, is suitable for testing the pressure transmission performance and blood blocking performance of pressure monitoring connectors/sensor protectors, as well as the flow performance testing of arteriovenous puncture sets of different specifications and pressures.


Feedback
PRODUCTS
Contact Us
A3-2, Yinfeng International Biological City, Hi-tech East Zone, Jinan 250104, Shandong, China
+86-531-88983898/88983889
Sales01@pubtestercn.com, Sales02@pubtestercn.com
Product overview

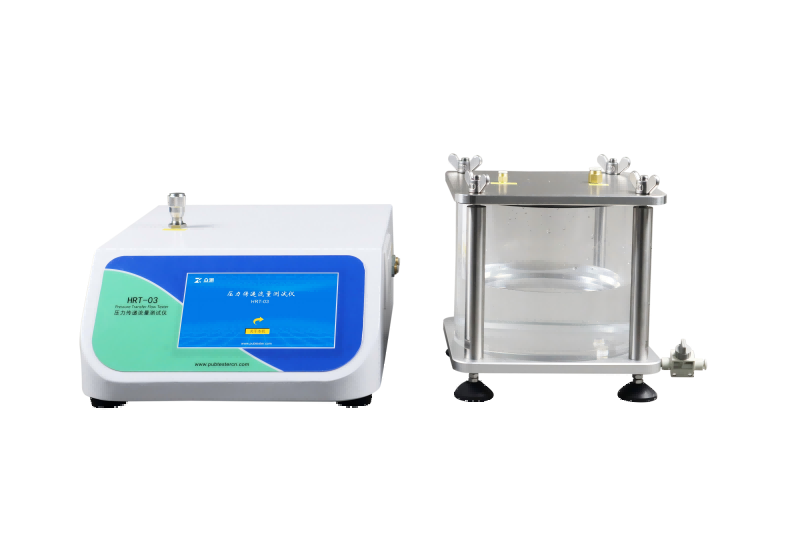

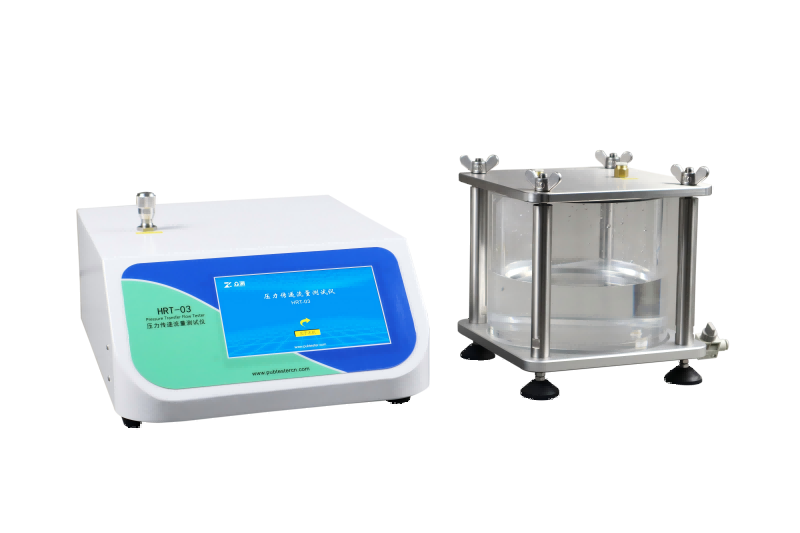

HRT-03 Pressure Transfer Flow Tester



HRT-03 Pressure Transfer Flow Tester, designed in accordance with standards GB/T 19335-2022 and YY/T 0328-2015, is suitable for testing the pressure transmission performance and blood blocking performance of pressure monitoring connectors/sensor protectors, as well as the flow performance testing of arteriovenous puncture sets of different specifications and pressures.


Technical Features

Ø Three test modes: Pressure transmission performance, blood blocking performance, flow rate of trocar.

Ø Equipped with dual sensors and vacuum generator precision pressure test system, which ensure the test accuracy

Ø 7-inch HD color touch screen

Ø The results are determined automatically and the test data can be printed

Ø Historical data can be quickly viewed

Ø With a powerful data storage function, which can store up to 100,000 test records

Ø Equipped with standard RS232 interface, which is convenient to PC connection and data transmission





Technical Specifications

Specifications

HRT-03

Test Range

              0～10kPa (standard)

Accuracy

              0.5%FS

Gas Supply Pressure

≤ 0.7MPa (Not in supply scope)

Port of Gas Supply

Φ8 mm PU Tubing

Dimension

Instrument: 300mm(L)×410mm(W)×150mm(H)

Device: 215mm(L)×215mm(W)×240mm(H)

Power Supply

AC 220V 50Hz/ AC 110V 60Hz

Net Weight

25Kg



Standards  GB/T 19335-2022, YY/T 0328-2015



Configuration

Standard configuration: Instrument, 7-inch touch screen, hydraulic leakage resistant device and micro printer.



Note: 1.The gas supply port of the instrument is Φ8 mm PU Tubing;

2. Customers will need to prepare for gas supply.
