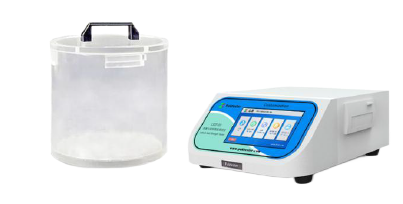

HRT-06 Abdominal Trocar Gas Barrier & Sealing Tester
HRT-06 Abdominal Trocar Gas Barrier & Sealing Tester adopts the positive pressure test principle and is suitable for testing the air barrier and sealing property of abdominal trocars.
Technical Features
Ø Embedded micro-computer chips, simplified and efficient user interface provide users with comfortable and smooth operating experience
Ø 7-inch HD color touch screen, display test data in real-time
Ø Safety designs such as overvoltage protection and power-off memory ensure system stability
Ø Equipped with standard RS232 interface, which is convenient to PC connection and data transmission
Originality design
Ø Equipped a high-precision electronic flow controller to achieve precise control of gas flow
Ø Pressure and time can be preset,input the value directly to enter the test mode
Ø Equipped with a solid stainless steel rod with a surface roughness of no more than 0.4um and a length no less than the working length of the puncture rod
Ø Has a powerful data storage function, which can storage up to 50,000 test records
Ø Equipped with a water container with a flat bottom
Ø The results are determined automatically and the test data can be printed
Technical Specifications
Specifications | HRT-06 |
Test Range | 0～10kPa |
Accuracy | 0.1kpa |
Resolution | 0.01 |
Gas Supply Pressure | 0.4~0.7MPa (Not in supply scope) |
Port of Gas Supply | Φ8 mm PU Tubing |
Dimension | Instrument: 310mm(L)×370mm(W)×150mm(H) |
Power Supply | AC 220V 50Hz/ AC 110V 60Hz |
Net Weight | 25Kg |
Standards YY1710-2020,YY1783-2021
Configuration
Standard configuration: Instrument, 7-inch touch screen, micro printer, water container and standard stainless steel rods (large and small).
Note: 1.The gas supply port of the instrument is Φ8 mm PU Tubing;
2. Customers will need to prepare for gas supply.
