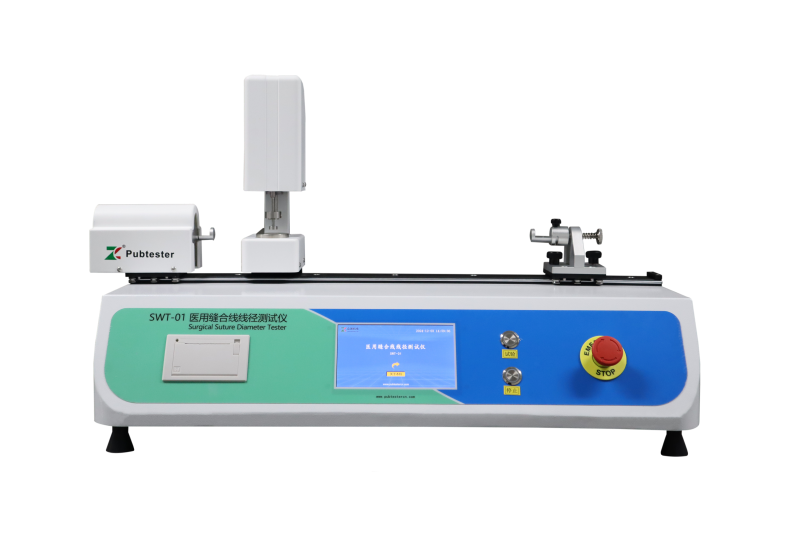

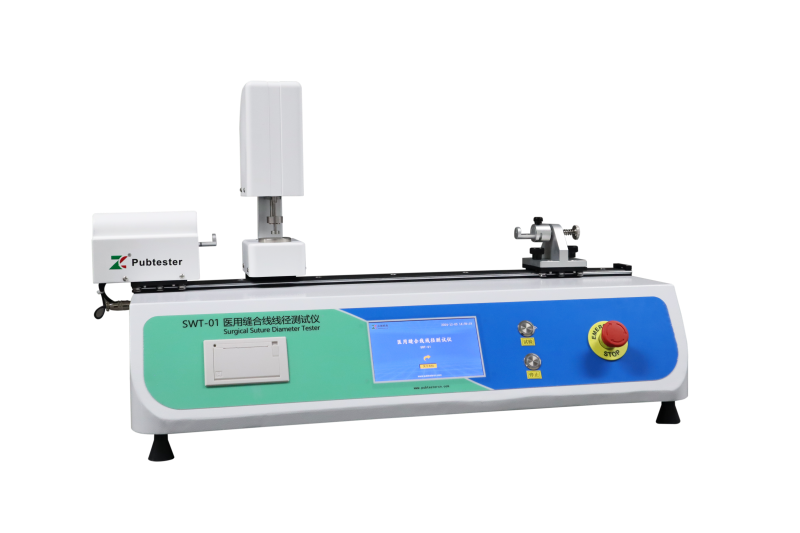

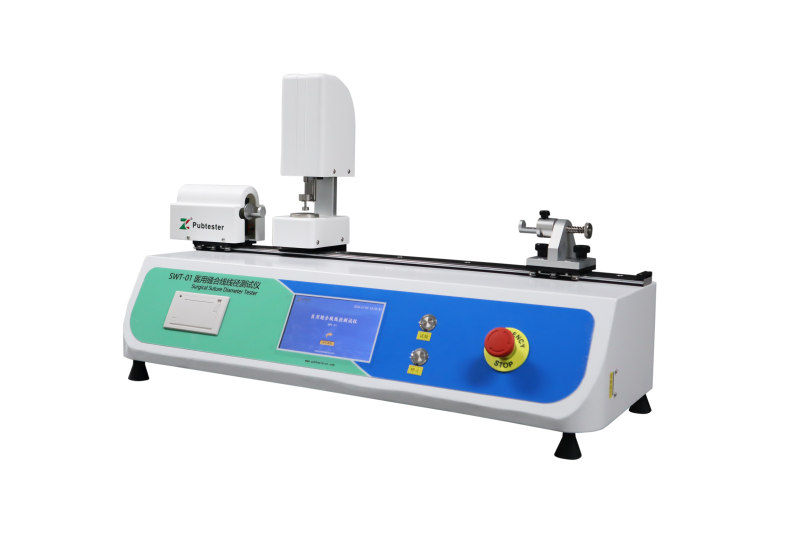

SWT-01 Surgical Suture Diameter Tester
SWT-01 Surgical Suture Diameter Tester, designed according to USP 861 (The United States Pharmacopeia), YY1116-2020, YY0167-2020, is used to determine the diameter of absorbable and non-absorbable surgical sutures suitable for suturing and ligating human tissues.
Product Features
Compliance
Ø Conforms to USP 861 (The United States Pharmacopeia), PRC YY1116-2020 (Absorbable surgical sutures), YY0167-2020 (Non-absorbable surgical sutures)
Ø Freely moved to multiple points with 1/4, 1/2 and 3/4 for measurement; multifilament sutures with specifications greater than metric size 2, the sutures can be rotated 90° and measured again without removing.
Stability
Ø Adopt grating displacement sensor instead of micrometer, with one ten-thousandth accuracy and good stability.
Convenience
Ø Manual loading, electric tensioning, multi-point automatic measurement
Ø Solve the problem of replacing weights for each specification, innovatively adopting the high-precision force sensors to automatically set the tensioning force, easy to operate.
Ø Equipped with test and stop shortcut buttons, one key test and pause.
Intellectualization
Ø 7-inch HD color LCD screen, display test data in real time.
Ø Touch operation: nominal specification, test load, print, test, left move, right move time, calibration.
Ø Recording of suture diameter data, output of data reports automatically, and printing of test results by micro-printer.
Ø Equipped with standard RS232 interface, which is convenient to PC connection and data transmission.
Ø With a powerful data storage function, which can store up to 10,0000 test records.
Safety Protection
Ø Over-travel protection, overload protection, power failure memory for safe operation.
Data Security (optional)
Ø Equipped with a four-level user security password policy to ensure the security of test data.
Ø The computer software fully complies with the requirements of GMP "Computerized System" and has functions such as user management, authority management, and data audit tracking.
Technical Specifications
Specifications | SWT-01 |
Test Item | Suture diameter |
Nominal specification | 12-0… …10 All I , II, III medical sutures |
Test Range | 0～6mm, deviation:≤±1‰ |
Resolution | 0.001mm |
Diameter of presser foot | 12.7±0.02 mm; anvil diameter: 50 mm |
Flatness of presser foot to anvil | ≤ ± 0.005mm |
Parallelism between presser foot and anvil | ≤1‰ |
Tensioning Force Range | 0～5000g, Accuracy: ±0. 1g |
Presser foot load on the suture | ≤60g, 210g±3g (with weights) |
Power Failure Saving | YES |
Load Cell | High accuracy force sensor (with software and hardware protection function) |
Test Data | 3 points (1/4, 1/2, 3/4 points) measurement test data and average value, Average value of multiple tests and its total average value and deviation value. |
Power Supply | AC220V50Hz/120V60Hz |
Net Weight | 40kg |
Instrument Dimension | 600mm(L)×340mm(W)×270mm(H) |
Standards
USP 861 (The United States Pharmacopeia),
PRC YY1116-2020 (Absorbable surgical sutures),
YY0167-2020 (Non-absorbable surgical sutures).
