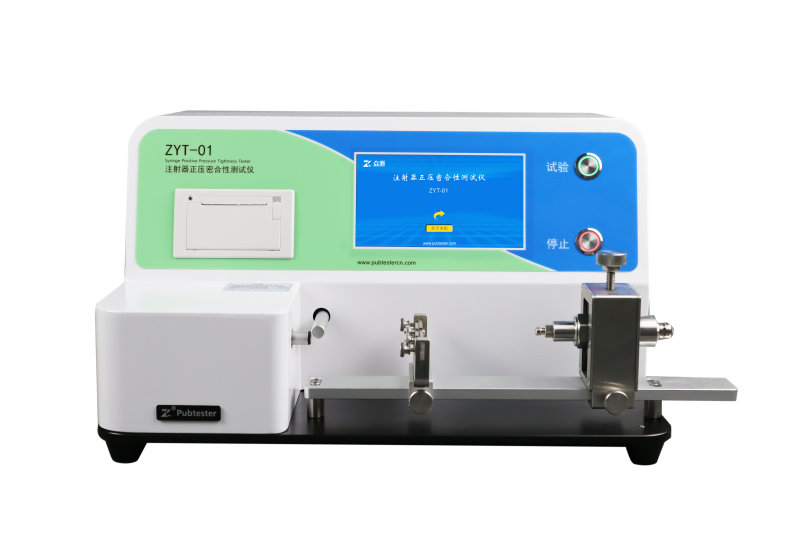

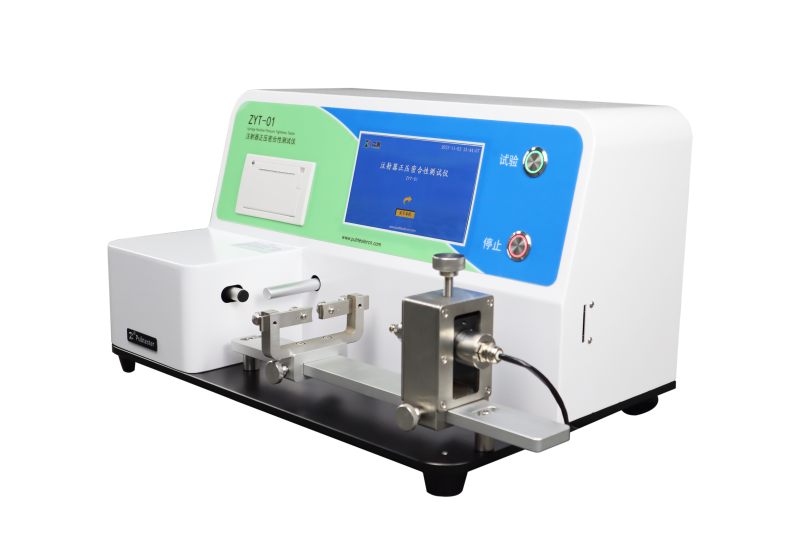

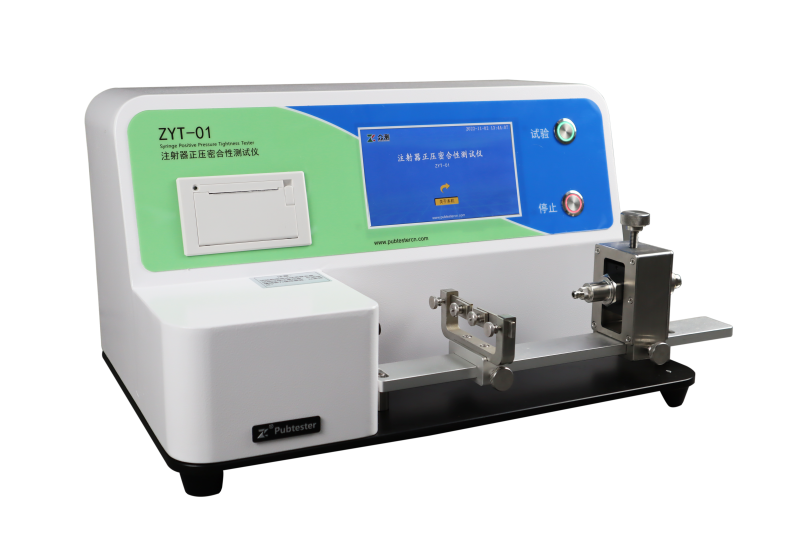

ZYT-01 Syringe Positive Pressure Tightness Tester
ZYT-01 Syringe Positive Pressure Tightness Tester is used to test the tightness or liquid leakage of various syringes such as hypodermic syringes, prefilled syringes, insulin injection pens, etc.
Product Features
Ø 7-inch colorful touch screen, easy to operate
Ø High precision sensor without force compensation ensures the accuracy of test results
Ø Equipped with micro printer, can print test data in real time
Ø With powerful data storage function, which can store more than 50,000 test records
Ø Micro printer and USB interface, convenient for data output and transmission
Ø Overload protection, and power-down memory and other intelligent configuration to effectively ensure safety
Ø The computer software fully complies with the requirements of GMP "Computerized System", with functions such as user management, authority management, and data audit trail.
Technical Specifications
Specifications | ZYT-01 |
Lateral Force | 0~10N |
Accuracy | ±0.01 N |
Axial Pressure | 0 ~ 400Kpa |
Accuracy | 0.5%FS |
Nominal Capacity | 1ml~60ml, optional |
Test Time | 0～99999.9s (settable) |
Instrument Dimension | 580mm(L)×350mm(W)×280mm(H) |
Net Weight | 20Kg |
Power Supply | 220V, 50Hz |
Test Principle
Suction water with a syringe, after sealing the nozzle hole of the syringe, the plunger is located in the most unfavorable direction relative to the barrel, and a certain force is applied to try to cause the leakage of the piston and the seals.
Applications
Basic Application | Extended Application |
Hypodermic syringes | Sterile syringes, low resistance syringes, and Pre-filled syringes, etc. |
Standards
ISO 7886, GB 15810-2019, YY0909-2013, YBB 00112004-2015
Configuration
Standard Configuration: Instrument, micro printer, touch screen, test fixture.
