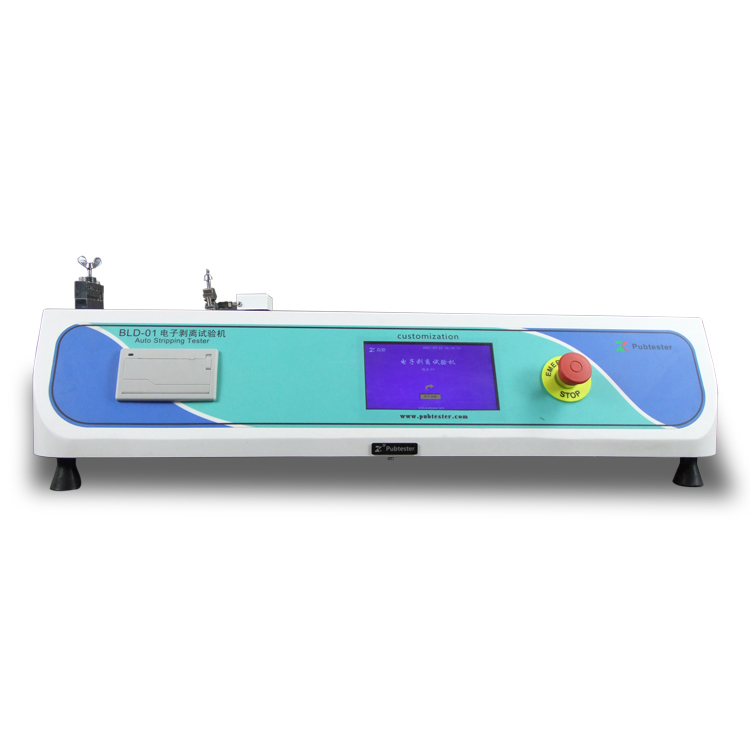

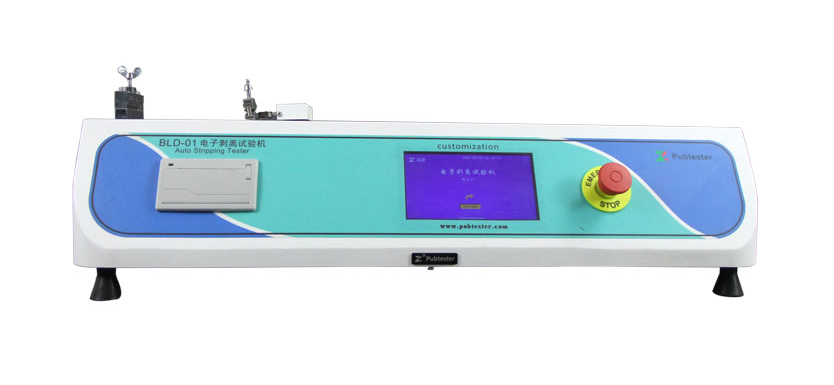

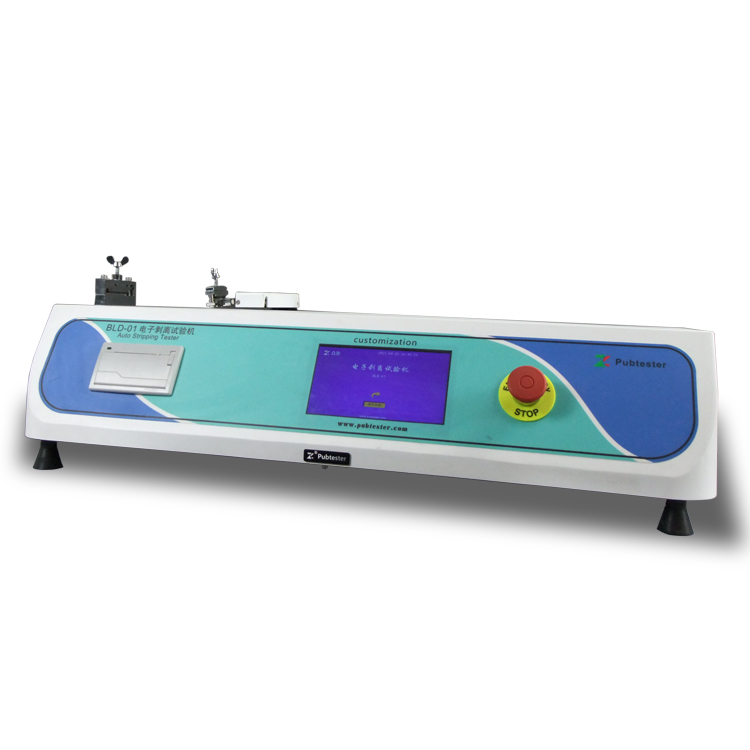

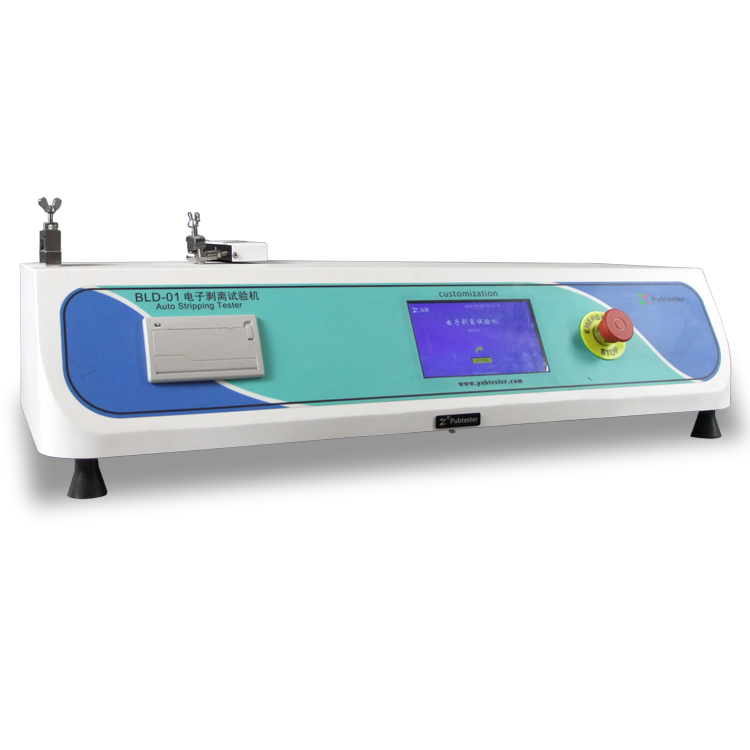

BLD-01 Auto Stripping Tester
BLD-01 Auto Stripping Tester can be used for peeling, tensile strength and heat sealing strength of packaging, adhesives, adhesive tapes, pressure sensitive tapes, medical adhesive bandage, protective films, release paper, laminated films, leatheroid, woven bags, films, paper, electronic carrier tapes. Equipped a small range sensor, it can also be used for release force testing with small force values.
Technical Features
Specialized Technology
Ø 0.5% of full scale high precision load cell effectively ensures accuracy and repeatability of test results.
Ø Advanced displacement control system, automatic displacement reading, which ensure the accuracy up to 0.1mm.
Ø High-performance drive system can achieve 0.05-500mm/min infinitely variable speed to meet different testing needs.
Ø Wide range of load cells available.
Ø 7-inch color touch screen with intelligent data processing functions provides a comfortable and smooth operating experience.
Ø Built-in micro printer for automatic printing.
Featured Functions
Ø Built-in independent test items such as tension and compression, peeling, and heat sealing tests, which conforms to various international test standards.
Ø Display the maximum value, minimum value, and average value for each test, and automatically record the data.
Ø With group statistical function, multiple test results can be printed at one time.
Ø Equipped with standard RS232 interface, which is convenient to PC connection and data transmission.
Ø Provides professional customization services to meet various needs in fixtures, software, etc.
Safety Protection
Ø Over-travel protection, overload protection, automatic return and power failure memory.
Ø Electronic limit switch, which does not occupy the effective stroke.
Ø Software over-range shutdown function.
Ø Equipped with a protection case to protect the sensor from external forces.
Data Security
Ø Equipped with four-level user security passwords to ensure the security of test data (optional).
Ø The software data is traceable, which can realize functions such as multi-level authority management, audit trail, electronic signature, etc., which conforms to the requirements of GMP "Computerized System" (optional).
Test Principle
The specimen clamped between two fixtures and make relative motion. Through the force transducer and displacement transducer, the force change and displacement change in the test process are collected, so as to calculate the tensile, peeling and deformation rate of the specimen.
Applications
Basic Application | Extended Application |
Tensile Strength and Deformation Rate | 180 Degree Peel Test | Tear Resistance | Shearing Performance | Heat Seal Performance | Adhesive Strength Test (soft) |
Tensile Strength at Break | 90 Degree Peel Test | Low Speed Unwrapping Force | Release Paper Peel Test | Opening Force of Bottle Caps | Adhesive Strength Test (hard) |
Note: *Additional accessories or customized sample grips may need to be purchased separately to complete the tests that cannot be completed with standard sample grips.
** Customized grips are needed for extended applications.
Technical Specifications
Specifications | BLD-01 |
Load Cell Capacity | 30N/50N/100N/200N |
Testing Accuracy | 0.5% FS |
Displacement Accuracy | 0.1mm |
Test Speed | 0.05~500 mm/min (Stepless speed control) |
Accuracy of Speed | ±1% |
Stroke | 500mm |
Number of Specimens | 1 |
Specimen Width | 30mm (standard), 50mm (optional) |
Clamping Way | Manual |
Power Supply | AC 220V 50Hz/120V 60Hz |
Instrument Dimension | 800mm(L)×320mm(W)×300mm(H) |
Net Weight | 31.5kg |
Standards
ASTM D 3330, GB/T 4850-2002, GB 8808, GB/T 1040.3-2006, GB/T 17200, GB/T 2790, GB/T 2791, GB/T 2792, QB/T 2358
Configuration
Standard configuration: Instrument, Touch Screen, Grips, Micro-printer
Optional configuration: Professional Software, Communication Cable, Test plate (50×125mm, 40×180mm, 50×200mm and others need to be customized), Sample cutter (10#, 15#, 20#, 25#, 25.4#, others need to be customized), Standard Pressure Roller, Customized Sample Grips, Calibration weight.
