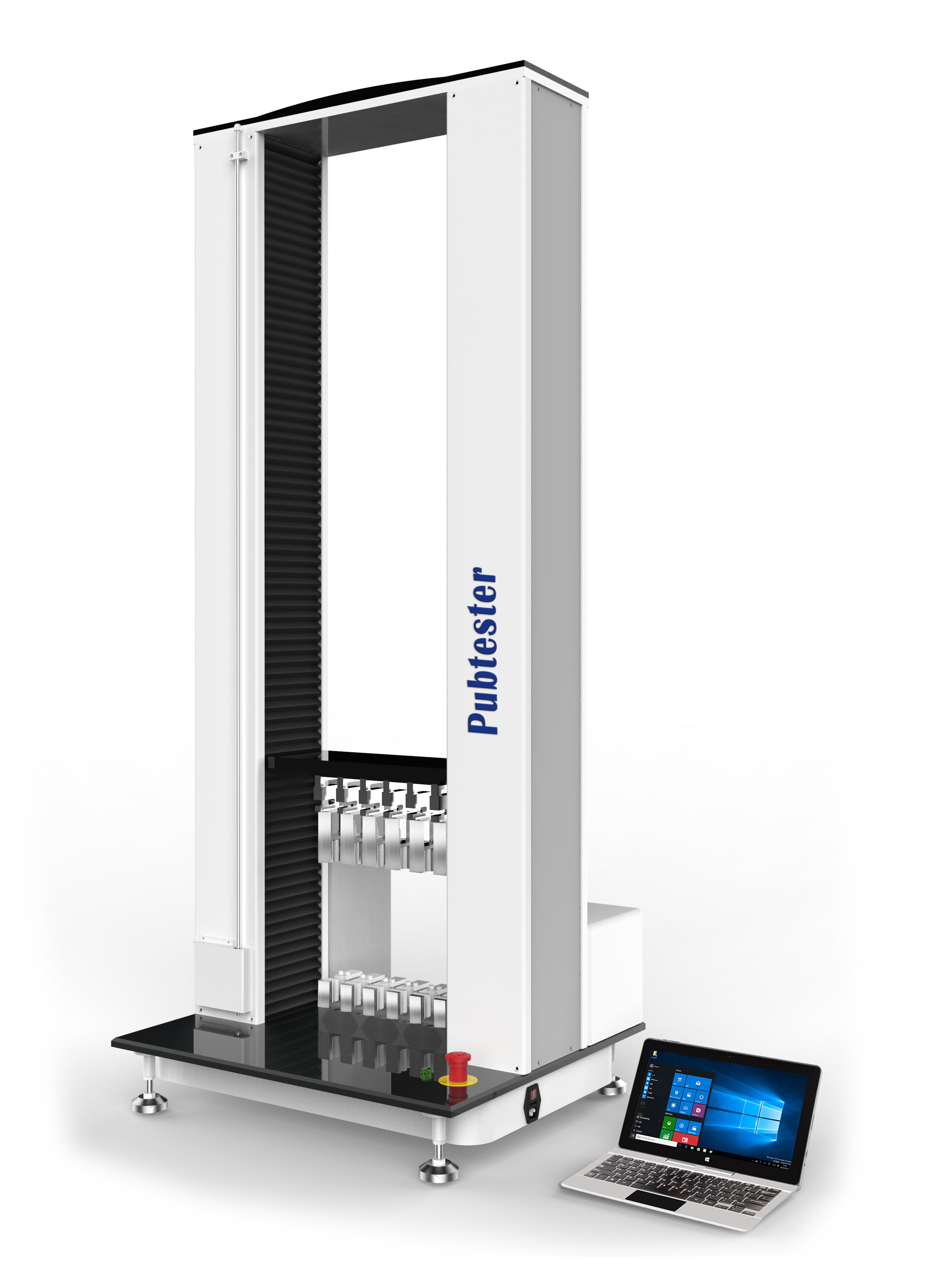

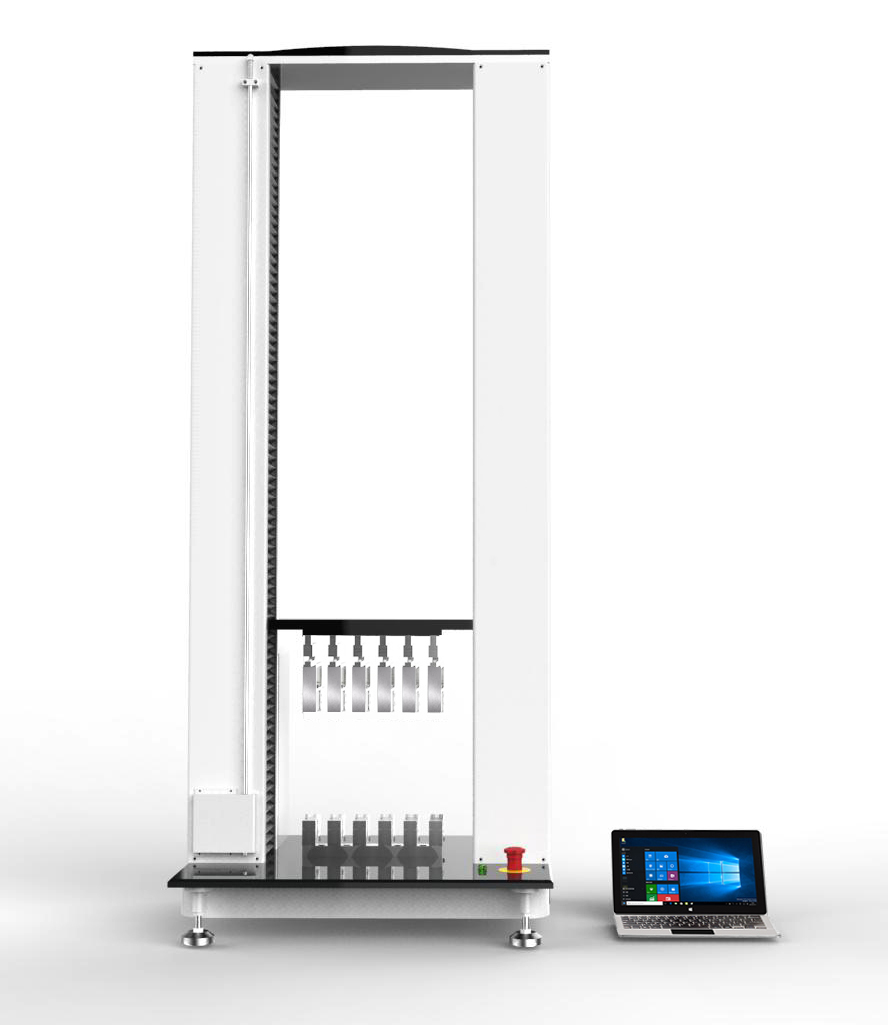

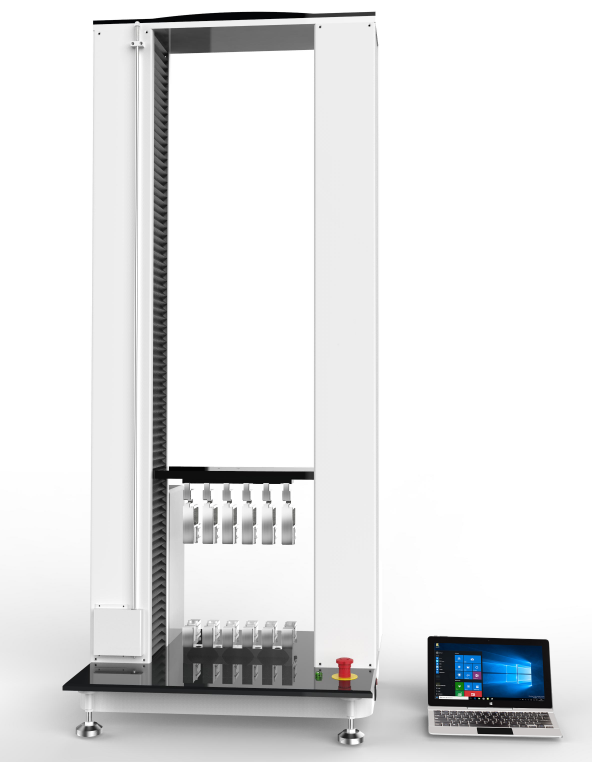

TST-6S Auto 6-station Tensile Tester
TST-6S Auto 6-station Tensile Tester is applicable to determination of tensile properties, peel strength, tearing strength, heat seal strength and bonding strength of plastic films, composite materials, adhesives, adhesive tapes, medical patches, protective films and pressure sensitive paper, etc.
Product Features
High-end configuration
Ø High-precision imported ball nut screw with a new transmission structure of three-guide column guide bushing makes the system run more smoothly.
Ø 0.5% of full scale effectively ensures accuracy and repeatability of test results.
Ø Equipped with advanced displacement control system, displacement accuracy can reach 0.1mm.
Ø With Panasonic’s advanced servo drive system, which can achieve infinitely variable speed to meet different test requirements.
Ø Wide range of load cells for a variety of force testing requirements.
Ø Intelligent designs of over-travel protection, overload protection, automatic position reset and power failure memory for safe test operation.
Ø Equipped with standard RS232 port, which is convenient to PC connection and data transmission.
Ø A variety of grips for choose, which can meet the test requirements of more than 10,000 materials.
Ø UL certified Schneider emergency stop button to maximize the safety of man and machine during the test.
Efficiency
Ø Six-station new design, saving testing time and greatly improving testing efficiency
Ø Portable hand-held control box, greatly increasing the convenience of operation.
Ø Pneumatic clamping system simplifies the specimen clamping process and improves the testing efficiency.
Professionalism
Ø Intuitive operation interface, convenient user-defined testing functions, and comprehensive data analysis and reporting functions.
Ø Built-in test file standard library, complied with various test standards
Ø Unique functions such as stress at elongation, elastic modulus, bending test, timing, constant force, positioning displacement test, interval point selection, etc.
Ø Real-time display of force-displacement, force-time, displacement-time, stress-strain and other curves, automatic calculation of maximum force, average force, maximum deformation, elastic modulus, etc, built-in powerful unit conversion program, users can customize various test unit
Ø The software data is traceable, which can realize functions such as multi-level authority management, audit trail, electronic signature, etc., which meets the requirements of GMP (optional)
Ø Pubtester also provides professional customization services to meet the individual needs of users in fixtures, software, etc.
Ø Free software upgrade lifetime.
Test Principle
The specimen clamped between two chuck and do relative motion. Conduct piercing or opening test through special clamp head. Collect the strength and displacement changes in the progress of test by force test and control system to calculate the corresponding force value data.
Technical Specifications
Specifications | TST-6S |
Load Cell Capacity | 50N/100N /250N /500N /1000N |
Testing Accuracy | 0.5% FS |
Drive system | High performance Panasonic’s servo driving system |
No. of Load Cell | 6 |
Speed of Crossbeam | 0.05~1000 mm/min (Adjustable) |
Accuracy of Speed | ±1% |
Maximum Stroke | 1000mm |
Number of Specimens | 1~ 6 |
Specimen Width | 30mm (Standard); 50mm (Optional) |
Clamping Way | Pneumatic |
Power Supply | AC 220V 50Hz/120V 60Hz |
Instrument Dimension | 700mm(L)×600mm(W)×1720mm(H) |
Net Weight | 115kg |
Standards
ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, JIS P8113, QB/T 2358, QB/T 1130, YY/T0148
Configuration
Standard configuration: Instrument, Pneumatic Grips, Pedal Switch, Professional Software, Communication Cable, Portable Control Box
Optional configuration: Test plate (50×125mm, 40×180mm, 50×200mm and others need to be customized), sample cutter (10#, 15#, 20#, 25#, 25.4#, others need to be customized), standard pressure roller, calibration weight, GMP software, other customized fixture, etc.
